SB-040400-MF0-TSA10

Active

Amphenol LTW

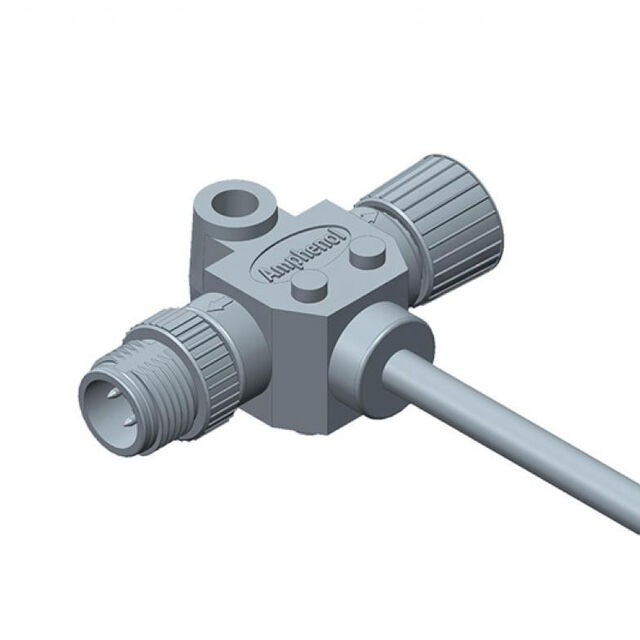

M SERIES SENSOR CONNECTOR, T CABLE, METAL, B CODING, 4A, 04 PINS, (END 1) MALE MALE, (END 2) FEMALE FEMALE, SCREW THREAD, LENGTH

Deep-Dive with AI

Search across all available documentation for this part.

SB-040400-MF0-TSA10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, T CABLE, METAL, B CODING, 4A, 04 PINS, (END 1) MALE MALE, (END 2) FEMALE FEMALE, SCREW THREAD, LENGTH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SB-040400-MF0-TSA10

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle, Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	T-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Shielding	Unshielded
Usage	Industrial Environments

SB-040400 Series

Part	1st Connector Shell Size - Insert	Cable Type	1st Connector Orientation	Usage	1st Connector Type	Color	Cable Material	1st Connector Number of Positions	2nd Connector Type	1st Connector Gender	1st Connector Number of Positions Loaded	Ingress Protection	Shielding	1st Connector Mounting Type	Length [x]	Length [x]	Assembly Configuration
Amphenol LTW SB-040400-MF0-TSA02	M12	Round	B	Industrial Environments	Plug Right Angle Receptacle Right Angle	Black	Polyvinyl Chloride (PVC)	4	Wire Leads	Female Sockets Male Pins	All	IP68 - Dust Tight Waterproof; NMEA 2000	Unshielded	Free Hanging (In-Line)	2 m	6.56 ft	T-Adapter on One End
Amphenol LTW SB-040400-MF0-TSA10	M12	Round	B	Industrial Environments	Plug Right Angle Receptacle Right Angle	Black	Polyvinyl Chloride (PVC)	4	Wire Leads	Female Sockets Male Pins	All	IP68 - Dust Tight Waterproof; NMEA 2000	Unshielded	Free Hanging (In-Line)			T-Adapter on One End
Amphenol LTW SB-040400-FF0-TSA10	M12	Round	B	Industrial Environments	Plug Right Angle (2)	Black	Polyvinyl Chloride (PVC)	4	Wire Leads	Female Sockets	All	IP68 - Dust Tight Waterproof; NMEA 2000	Unshielded	Free Hanging (In-Line)			T-Adapter on One End
Amphenol LTW SB-040400-MF0-TSA01	M12	Round	B	Industrial Environments	Plug Right Angle Receptacle Right Angle	Black	Polyvinyl Chloride (PVC)	4	Wire Leads	Female Sockets Male Pins	All	IP68 - Dust Tight Waterproof; NMEA 2000	Unshielded	Free Hanging (In-Line)	1 m	3.28 ft	T-Adapter on One End
Amphenol LTW SB-040400-MM0-TSA01	M12	Round	B	Industrial Environments	Receptacle Right Angle (2)	Black	Polyvinyl Chloride (PVC)	4	Wire Leads	Male Pins	All	IP68 - Dust Tight Waterproof; NMEA 2000	Unshielded	Free Hanging (In-Line)	1 m	3.28 ft	T-Adapter on One End

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 25.26
Newark	Each	10	$ 24.48
		25	$ 22.79
		50	$ 20.94
		100	$ 20.63
		250	$ 20.33

Description

General part information

SB-040400 Series

Circular Cable Assembly Unshielded 32.8' (10.00m)

Documents

Technical documentation and resources

No documents available
