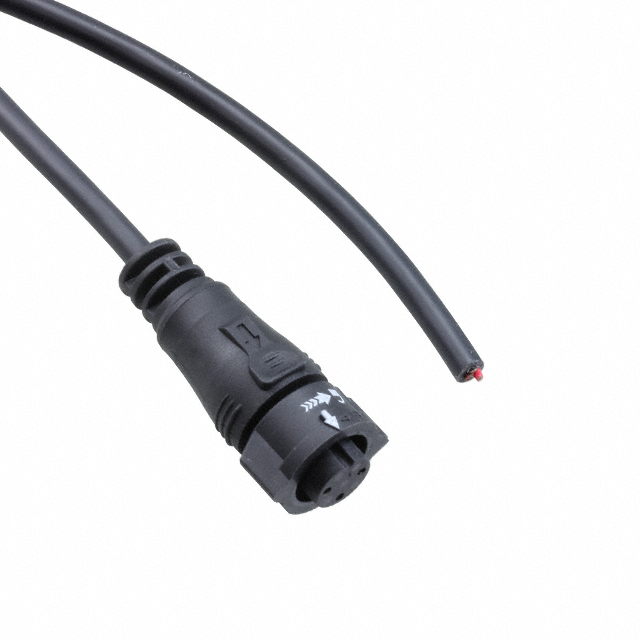

BD-03AFFM-QL8D01

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, OVERMOLDED, LENGTH 1000MM, IP

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, PUSH LOCK, OVERMOLDED, LENGTH 1000MM, IP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-03AFFM-QL8D01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	B
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Shell Size - Insert	Cable Material	Ingress Protection	1st Connector Type	Usage	Cable Type	1st Connector Orientation [custom]	Shielding	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	2nd Connector Type	Length [x]	Length [x]	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Color
Amphenol LTW BD-03AFFM-QR8E01	B	Polyvinyl Chloride (PVC)	IP68 - Dust Tight Waterproof	Plug Right Angle	Industrial Environments	Round	Keyed	Unshielded	Female Sockets	Standard	3	Wire Leads	1 m	3.28 ft	All	Free Hanging (In-Line)	Black
Amphenol LTW BD-03AFFM-QL8D01	B	Polyvinyl Chloride (PVC)	IP68 - Dust Tight Waterproof	Plug	Industrial Environments	Round	Keyed	Unshielded	Female Sockets	Standard	3	Wire Leads	1 m	3.28 ft	All	Free Hanging (In-Line)	Black
Amphenol LTW BD-03AFFM-QL8E01	B	Polyvinyl Chloride (PVC)	IP68 - Dust Tight Waterproof	Plug	Industrial Environments	Round	Keyed	Unshielded	Female Sockets	Standard	3	Wire Leads	1 m	3.28 ft	All	Free Hanging (In-Line)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
