Technical Specifications
Parameters and characteristics for this part
| Specification | 5302UE 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 4.67 mm |
| Jacket (Insulation) Diameter [diameter] | 0.184 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Ratings | UL Style CMR |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5302UE Series

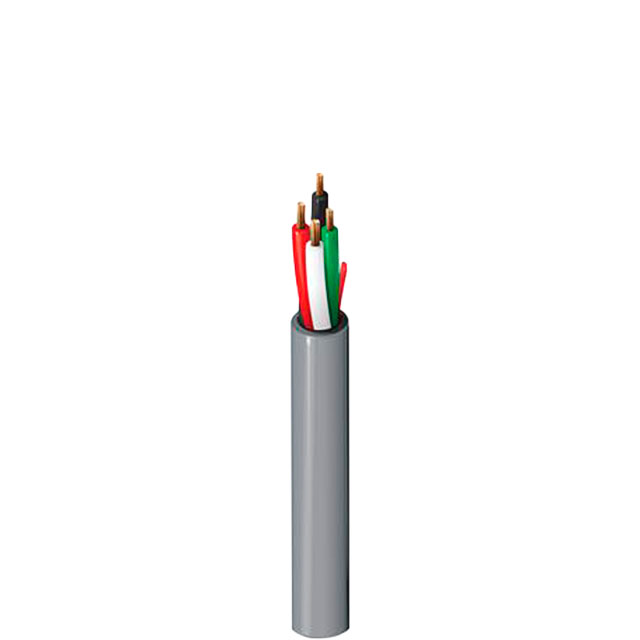

The 5302UE 0081000 is a 4-conductor Unshielded Cable with 18AWG bare copper conductors and polypropylene insulation. This 6302UE plenum multi-conductor cable features gray PVC jacket with ripcord. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
