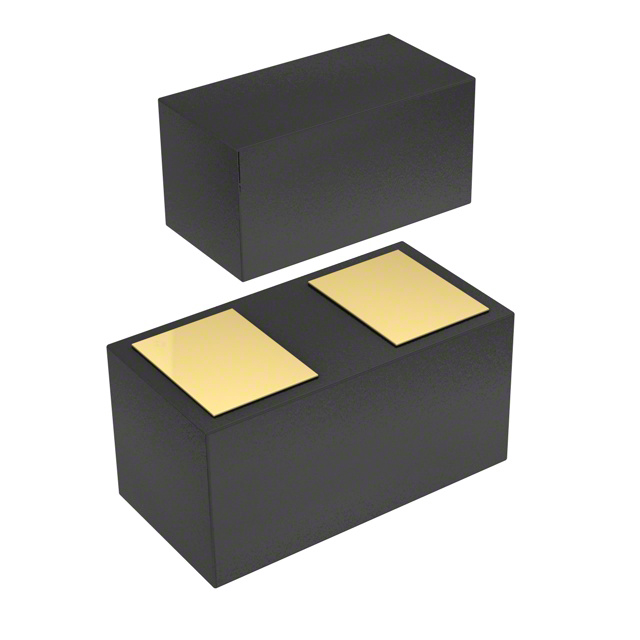

ESD110B102ELSE6327XTSA1

Obsolete

Infineon Technologies

ESD SUPPRESSOR TVS BI-DIR 18.5V 2-PIN TSSLP T/R

Search across all available documentation for this part.

Obsolete

Infineon Technologies

ESD SUPPRESSOR TVS BI-DIR 18.5V 2-PIN TSSLP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ESD110B102ELSE6327XTSA1

Applications	RF Antenna
Bidirectional Channels [custom]	1
Capacitance @ Frequency	0.3 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Power Line Protection	False
Supplier Device Package	PG-TSSLP-2-4
Type	Zener
Voltage - Breakdown (Min) [Min]	20 V
Voltage - Clamping (Max) @ Ipp	17 V
Voltage - Reverse Standoff (Typ) [Max]	18.5 V

Part	Bidirectional Channels [custom]	Capacitance @ Frequency	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Applications	Voltage - Reverse Standoff (Typ) [Max]	Type	Package / Case	Package / Case	Voltage - Breakdown (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power Line Protection
Infineon Technologies ESD110B102ELSE6327XTSA1	1	0.3 pF	PG-TSSLP-2-4	17 V	RF Antenna	18.5 V	Zener	0603 Metric	0201	20 V	Surface Mount	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

17V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSSLP-2-4
