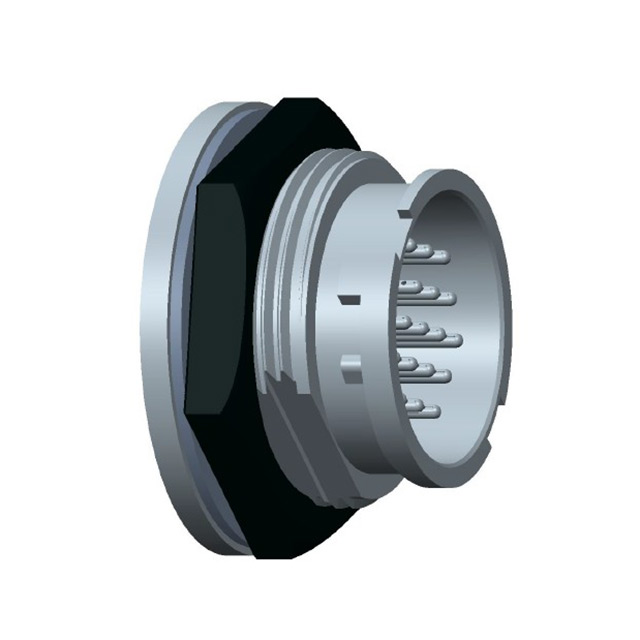

ADD-18PMMS-LC7001

Active

Amphenol LTW

CONN RCPT MALE 18P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 18P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ADD-18PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Shell Size - Insert	Contact Finish - Mating	Fastening Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Color	Number of Positions	Shielding	Ingress Protection	Shell Material	Current Rating (Amps)	Connector Type	Mounting Feature	Contact Material	Primary Material
Amphenol LTW ADD-18PMMS-LC7001	D	Gold	Bayonet Lock	300 VDC	-40 °C	105 ░C	Keyed	Black	18	Unshielded	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	5 A	Male Pins Receptacle	Bulkhead - Front Side Nut	Copper Alloy	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder Cup
