AWG28-16/F-1/300

Active

Assmann WSW Components

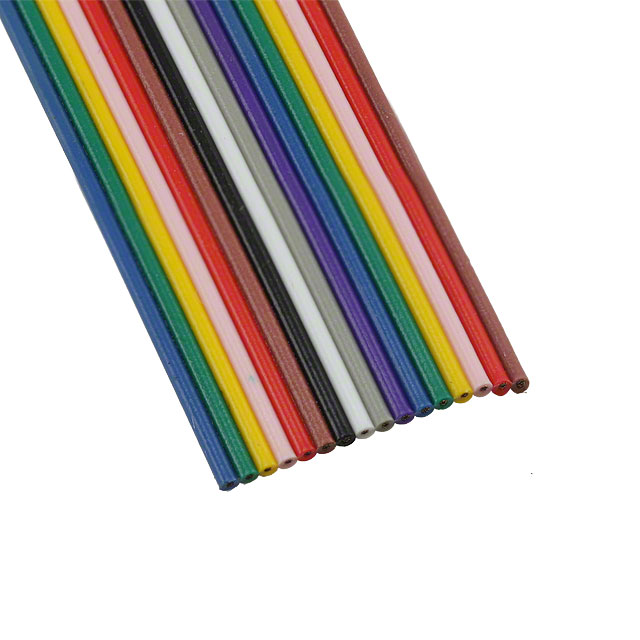

MULTI-COLOR RIBBON CABLE-28AWG, 1.0MM PITCH,16 CONDUCTORS, 300 FEET, 13 REEL

Search across all available documentation for this part.

Active

Assmann WSW Components

MULTI-COLOR RIBBON CABLE-28AWG, 1.0MM PITCH,16 CONDUCTORS, 300 FEET, 13 REEL

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-16/F-1/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	Enter Number of Feet in Order Quantity
Number of Conductors	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	0.63 in
Ribbon Width [y]	16 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Cable Type	Length	Length	Ribbon Width [y]	Ribbon Width [y]	First Conductor Mark	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Conductor Material	Shielding	Ratings	Number of Conductors	Insulation Resistance	Jacket Color	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Operating Temperature	Voltage	Length	Spool Size	Spool Size	Operating Temperature [Max]	Operating Temperature [Min]
Assmann WSW Components AWG28-16/F/300	Flat Cable	91.44 m	300 ft	20.32 mm	0.8 in	Red	28 AWG	0.89 mm	0.035 in	Copper Tinned	Unshielded	UL Style 2651	16	100 MOhms	Multiple	0.05 in	1.27 mm	100 ft	30.48 m	7	36 AWG	Poly-Vinyl Chloride (PVC)	105 C	300 V
Assmann WSW Components AWG28-16/F-1/300	Flat Cable			16 mm	0.63 in		28 AWG	0.89 mm	0.035 in	Copper Tinned	Unshielded	UL Style 2651	16	100 MOhms	Multiple	0.039 in	1 mm			7	36 AWG	Poly-Vinyl Chloride (PVC)		300 V	Enter Number of Feet in Order Quantity	300 ft	91.44 m	105 ░C	-10 °C
Assmann WSW Components AWG28-16/G-1/300	Flat Cable			16 mm	0.63 in	Red	28 AWG	0.89 mm	0.035 in	Copper Tinned	Unshielded	UL Style 2651	16	100 MOhms	Gray	0.039 in	1 mm			7	36 AWG	Poly-Vinyl Chloride (PVC)		300 V	Enter Number of Feet in Order Quantity	300 ft	91.44 m	105 ░C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Multiple 16 Conductors 0.039" (1.00mm) Flat Cable Enter Number of Feet in Order Quantity
