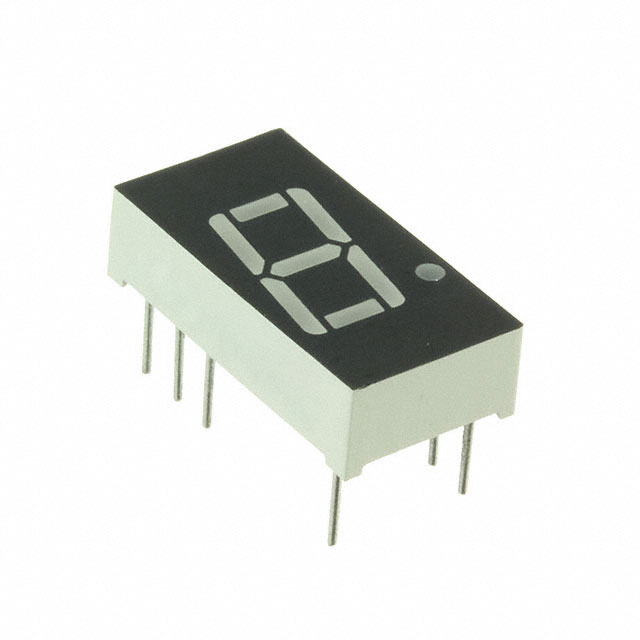

VAOS-C402S9-BW/50
ObsoleteVisual Communications Company - VCC
DISPLAY 7-SEG 0.4" SGL RED 14DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VAOS-C402S9-BW/50
ObsoleteVisual Communications Company - VCC
DISPLAY 7-SEG 0.4" SGL RED 14DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOS-C402S9-BW/50 |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 7.5 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 14-DIP |
| Package / Case [x] | 0.3 " |
| Package / Case [y] | 7.62 mm |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.736 in |
| Size / Dimension [x] | 18.7 mm |
| Size / Dimension [y] | 0.386 in |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [z] | 5.1 mm |
| Size / Dimension [z] | 0.201 " |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VAOS-C402 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.8V 20mA 0.736" H x 0.386" W x 0.201" D (18.70mm x 9.80mm x 5.10mm) 14-DIP (0.300", 7.62mm)
