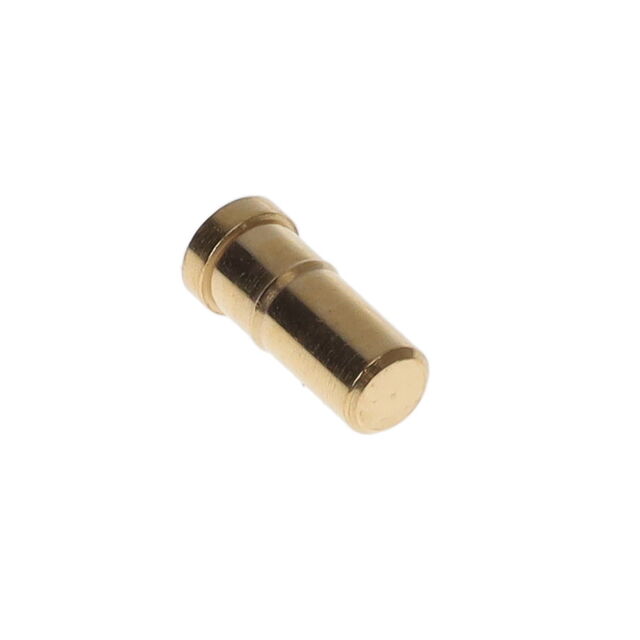

0434-0-15-15-03-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.060 PRESSFIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0434-0-15-15-03-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.06 in |
| Accepts Pin Diameter [Max] [diameter] | 1.52 mm |
| Accepts Pin Diameter [Min] [diameter] | 1.02 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.04 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Mounting Hole Diameter [diameter] | 0.106 in |
| Mounting Hole Diameter [diameter] | 2.69 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.078 in |
| Pin Hole Diameter [diameter] | 1.98 mm |
| Socket Depth | 5.21 mm |
| Socket Depth | 0.205 in |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.44 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.94 | |||
Description
General part information
0434-0 Series
Pin Receptacle Connector 0.040" ~ 0.060" (1.02mm ~ 1.52mm) No Tail Press-Fit
