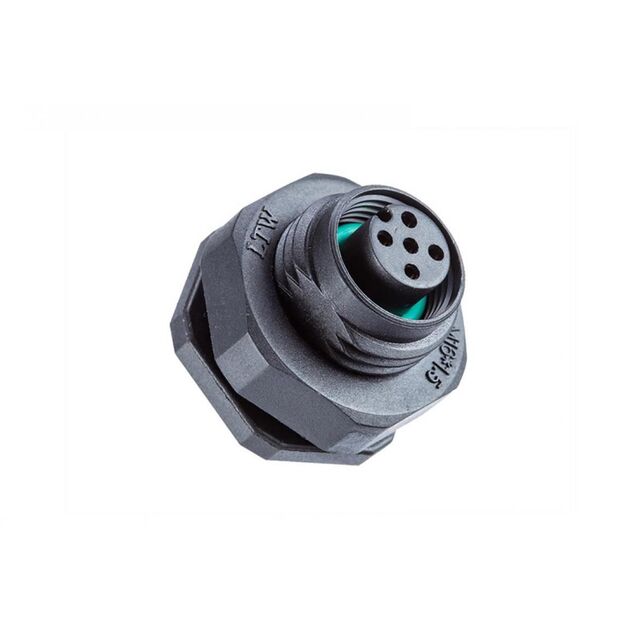

HPC-05PFFS-SF8001

Active

Amphenol LTW

NMEA 2000, MICRO, PLASTIC, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTACLE, IP68 ROHS

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA 2000, MICRO, PLASTIC, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTACLE, IP68 ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	HPC-05PFFS-SF8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-5
Shielding	Shielded
Voltage Rating	60 VDC

Part	Mounting Feature	Orientation	Ingress Protection	Connector Type	Contact Finish - Mating	Shell Size - Insert	Insert Material	Current Rating (Amps)	Contact Material	Voltage Rating	Primary Material	Shielding	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Color
Amphenol LTW HPC-05PFFS-SF8001	Bulkhead - Front Side Nut	Keyed	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Gold	M12-5	Polyamide (PA) Nylon Glass Filled	4 A	Copper Alloy	60 VDC	Plastic	Shielded	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	UL94 V-0	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
