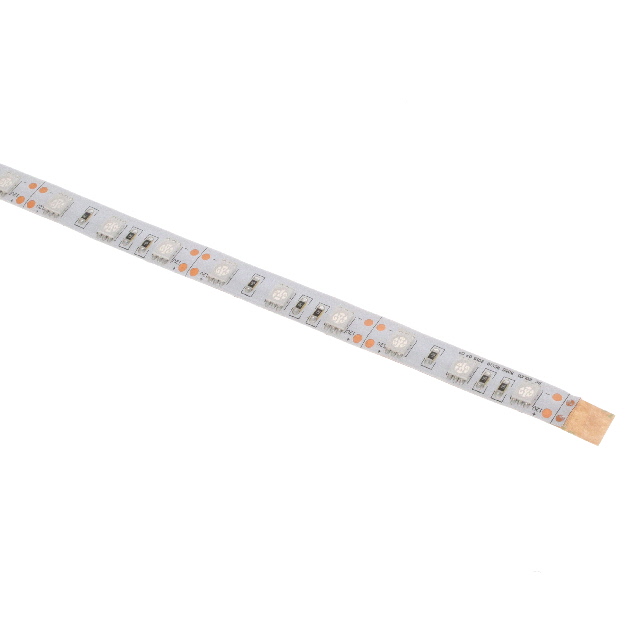

AB-FC012UA-19700-XA2

Active

American Bright Optoelectronics Corporation

LED MOD AB-FC UVA LNR STRP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FC UVA LNR STRP

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FC012UA-19700-XA2

Color	UltraViolet
Configuration	Linear Light Strip, Flexible
Current - Max [Max]	4.16 A
Current - Test	830 mA
Features	IP65
Lens Type	Flat
Lumens/Watt @ Current - Test	1.5 lm/W
Luminous Flux @ Current/Temperature	15 lm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	10 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	398 nm
Wavelength [Max]	400 nm
Wavelength [Min]	395 nm

LED MOD AB-FC UVA LNR STRP

Part	Features	Type	Lens Type	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength [Max]	Wavelength [Min]	Wavelength	Color	Current - Max [Max]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Current - Test	Lumens/Watt @ Current - Test
American Bright Optoelectronics Corporation AB-FC012UA-19700-XA2	IP65	LED Module	Flat	12 V	Flexible, Linear Light Strip	400 nm	395 nm	398 nm	UltraViolet	4.16 A	120 °	5000 mm	10 mm	15 lm	830 mA	1.5 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FC Ultraviolet Linear Light Strip, Flexible
