N3372-5002RB

Active

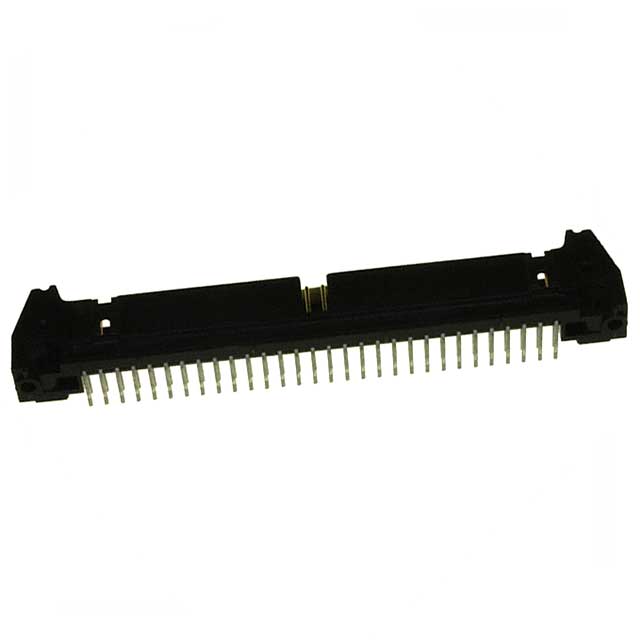

WIRE-BOARD CONN, HEADER, 60POS, 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3372-5002RB

Active

WIRE-BOARD CONN, HEADER, 60POS, 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.00
		10	$ 6.79
		150	$ 5.61
		600	$ 5.09
		1050	$ 4.89
Newark	Each	1	$ 0.44
		10	$ 0.42
		25	$ 0.36

Description

General part information

N3372 Series

Connector Header Through Hole, Right Angle 60 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3372-5002RB	N3372 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short, Push-Pull
Insulation Color	Black	Black
Insulation Height	0.34 in	0.31 - 0.68 in
Insulation Height	8.64 mm	7.87 - 17.27 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.652 - 0.695 in
Overall Contact Length	-	16.56 - 17.65 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N3372 Series

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 60 CONTACTS, THROUGH HOLE

Part	Mounting Type	Number of Positions Loaded	Number of Rows	Insulation Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Connector Type	Termination	Fastening Type	Shrouding	Current Rating (Amps)	Contact Type	Contact Finish - Mating	Contact Shape	Style	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating
3M N3372-6303RB	Through Hole	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.695 in	17.65 mm	Header	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-L303RB	Through Hole, Right Angle	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	16.76 mm	0.66 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header, Stackable (2)	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 4 Wall		Male Pin	Gold	Square	Board to Board, Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-2303RB	Through Hole	All	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.695 in	17.65 mm	Header	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 3 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-1303RB	Through Hole, Right Angle	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	7.87 mm	0.31 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 3 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	3.94 mm	0.155 "	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-6202RB	Through Hole	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.652 in	16.56 mm	Header	Solder	Latch Lock/Eject Hooks, Short	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-5002RB	Through Hole, Right Angle	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	8.64 mm	0.34 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header	Solder	Push-Pull	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-6302RB	Through Hole	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	17.27 mm	0.68 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin	0.652 in	16.56 mm	Header	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 4 Wall	1.75 A	Male Pin	Gold	Square	Board to Board, Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
3M N3372-L302RB	Through Hole, Right Angle	All	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	30 Áin	0.76 Ám	60	105 ░C	-55 °C	2.54 mm	0.1 in	16.76 mm	0.66 in	200 µin	5.08 µm	6.1 mm	0.24 in	Tin			Header, Stackable (2)	Solder	Latch Lock/Eject Hooks, Long	Shrouded - 4 Wall		Male Pin	Gold	Square	Board to Board, Cable	2.84 mm	0.112 in	UL94 V-0	Black	0.1 in	2.54 mm
