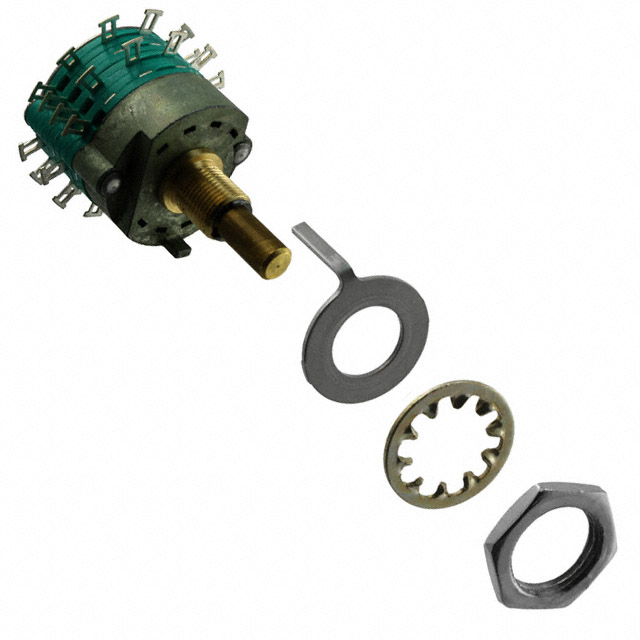

C4D0212N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D0212N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	27.33 mm
Index Stops	Adjustable
Number of Decks	2
Number of Poles per Deck	1
Number of Positions [Max]	12
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Contact Timing	Termination Style	Index Stops	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Contact Material	Contact Finish	Circuit per Deck	Number of Decks	Angle of Throw	Voltage Rating - DC	Current Rating (Amps)	Number of Positions [Max]	Number of Positions [Min]	Actuator Length [x]	Voltage Rating - AC
ELECTROSWITCH C4D0212N-A	1	6.35 mm	Flatted	Non-Shorting	Solder Lug	Adjustable	27.33 mm	9.78 mm	Brass	Silver	SP12T	2	30 °	28 V	300 mA 500 mA	12	2	0.5 in	125 V
