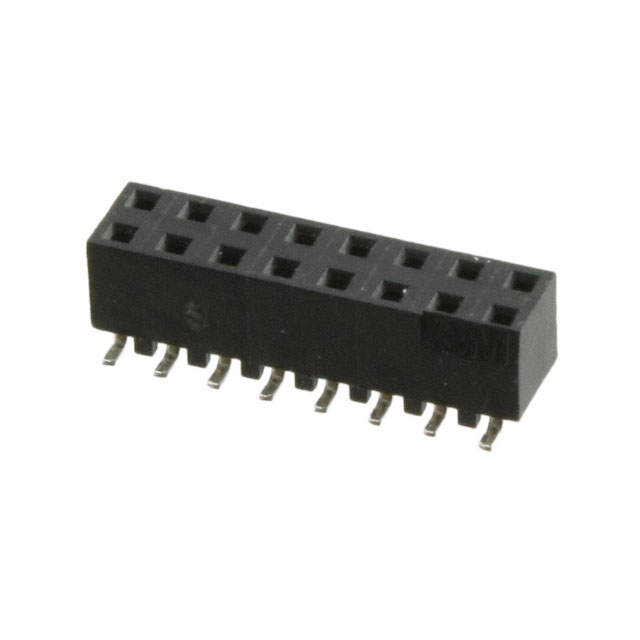

CONN RCPT 16POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
150216-2000-RB - 150216-2000-RB

150216-2000-RB

Active
3M

CONN RCPT 16POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification150216-2000-RB150216 Series
Connector TypeReceptacleReceptacle
Contact Finish - MatingGoldGold
Contact Finish - PostTinTin-Lead, Tin
Contact Finish Thickness - Mating30 Áin15 - 30 µin
Contact Finish Thickness - Mating0.76 Ám0.38 - 0.76 µm
Contact Finish Thickness - Post200 µin200 µin
Contact Finish Thickness - Post5.08 µm5.08 µm
Contact Length - Post-2.54 mm
Contact Length - Post-0.1 in
Contact MaterialCopper AlloyCopper Alloy
Contact ShapeSquareSquare
Contact TypeFemale SocketFemale Socket
Fastening TypePush-PullPush-Pull
Features-Board Guide
Insulation ColorBlackBlack
Insulation Height4.65 mm4.5 - 4.65 mm
Insulation Height0.183 in0.177 - 0.183 "
Insulation MaterialThermoplasticThermoplastic
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeSurface MountThrough Hole, Right Angle, Surface Mount, Through Hole
Number of Positions1616
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-55 °C-55 °C
Pitch - Mating [x]0.079 in0.079 in
Pitch - Mating [x]2 mm2 mm
Row Spacing - Mating0.079 in0.079 in
Row Spacing - Mating2 mm2 mm
StyleBoard to Board, CableBoard to Board, Cable
TerminationSolderSolder
Voltage Rating500 V500 V
