150216-6002-RB

Active

80000900615 150216-6002-RB=16/2MMBSKT/STR/.100/30U/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150216-6002-RB

Active

80000900615 150216-6002-RB=16/2MMBSKT/STR/.100/30U/ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 2.31
		476	$ 1.79
Newark	Each	100	$ 3.59
		250	$ 3.29
		500	$ 3.05
		1000	$ 2.87

Description

General part information

150216 Series

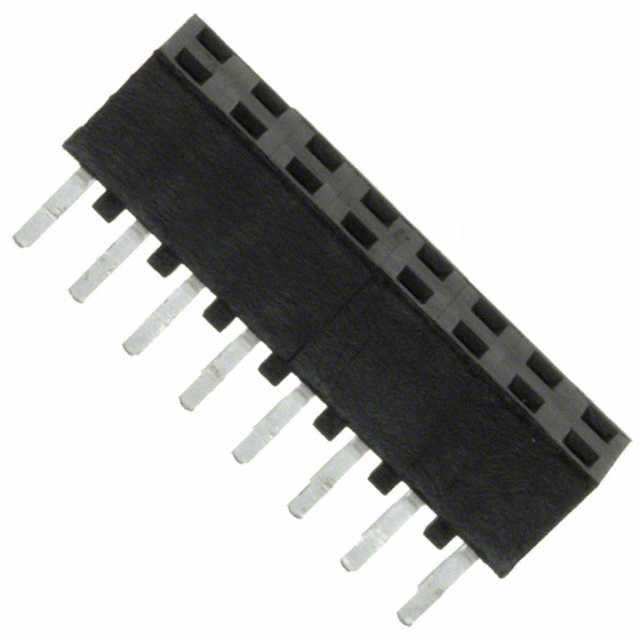

16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150216-6002-RB	150216 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 µin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 "
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Surface Mount, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150216 Series

CONN RCPT 16P 0.079 GOLD PCB R/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Termination	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Voltage Rating	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Style	Insulation Color	Contact Type	Number of Rows	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Connector Type	Mounting Type	Features
3M 150216-5002-TH	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin-Lead	Push-Pull	15 µin	0.38 µm	2.54 mm	0.1 in	500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.179 "	4.55 mm	Receptacle	Through Hole, Right Angle
3M 150216-2020-RB	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin	Push-Pull	30 Áin	0.76 Ám			500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.183 in	4.65 mm	Receptacle	Surface Mount	Board Guide
3M 150216-2020-TB	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin-Lead	Push-Pull	30 Áin	0.76 Ám			500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.183 in	4.65 mm	Receptacle	Surface Mount	Board Guide
3M 150216-6002-TB	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin-Lead	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.177 in	4.5 mm	Receptacle	Through Hole
3M 150216-6002-RB	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.177 in	4.5 mm	Receptacle	Through Hole
3M 150216-2000-RB	105 ░C	-55 °C	All	Solder	Square	0.079 in	2 mm	Thermoplastic	Tin	Push-Pull	30 Áin	0.76 Ám			500 V	16	UL94 V-0	200 µin	5.08 µm	Copper Alloy	Board to Board, Cable	Black	Female Socket	2	Gold	0.079 in	2 mm	0.183 in	4.65 mm	Receptacle	Surface Mount
