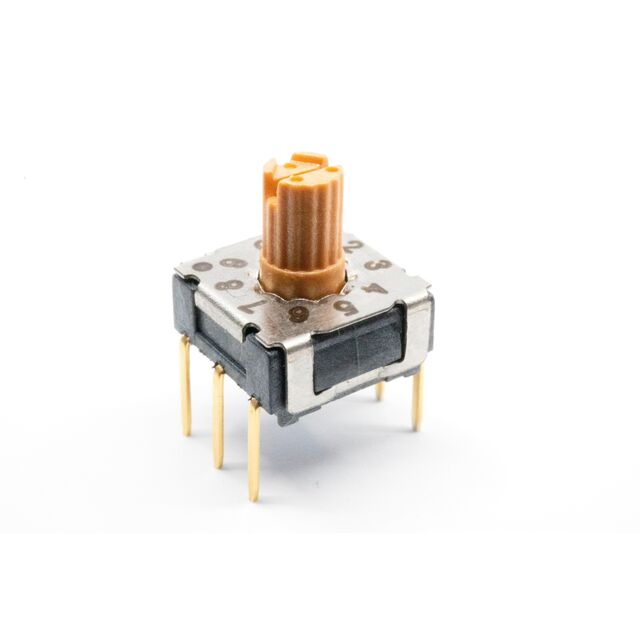

RDMBC10P1T

Active

E-Switch

ENCODING SWITCH; POS: 10; THT; RCONT MAX: 80MΩ; RINSUL MIN: 100MΩ

Search across all available documentation for this part.

Active

E-Switch

ENCODING SWITCH; POS: 10; THT; RCONT MAX: 80MΩ; RINSUL MIN: 100MΩ

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Circuit	Mounting Type	Current Rating (Amps)	Length [x]	Length [x]	Actuator Level	Contact Finish	Termination Style	Voltage Rating	Features	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Washable
E-Switch RDMBC10P1T	10	BCD Complement	Through Hole	100 mA	0.291 in	7.4 mm	Raised	Gold	PC Pin	42 VDC	IP67 - Dust Tight Waterproof	8.15 mm	0.321 in	0.1 in	Full	2.54 mm	Rotary with Shaft	25000 Steps	25000 Steps	125 °C	-60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	70	$ 3.89
TME	N/A	70	$ 5.58

General part information

Dip Switch BCD Complement 10 Position Through Hole Rotary with Shaft Actuator 100mA 42VDC
