0640-0-15-15-48-27-10-0
ActiveMill-Max Manufacturing Corp.

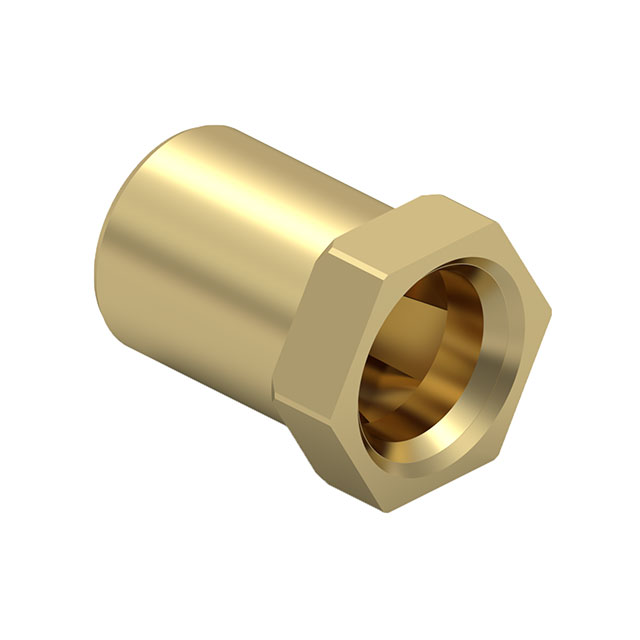

ZERO PROFILE RECEPTACLE WITH EAR
Deep-Dive with AI
Search across all available documentation for this part.
0640-0-15-15-48-27-10-0
ActiveMill-Max Manufacturing Corp.
ZERO PROFILE RECEPTACLE WITH EAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0640-0-15-15-48-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.043 in |
| Accepts Pin Diameter [Max] | 1.09 mm |
| Accepts Pin Diameter [Min] | 0.037 in |
| Accepts Pin Diameter [Min] | 0.94 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.088 " |
| Flange Diameter [diameter] | 2.24 mm |
| Length - Overall | 2.67 mm |
| Length - Overall | 0.105 in |
| Mounting Hole Diameter [diameter] | 2.16 mm |
| Mounting Hole Diameter [diameter] | 0.085 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.059 in |
| Pin Hole Diameter [diameter] | 1.51 mm |
| Socket Depth | 2.44 mm |
| Socket Depth | 0.096 " |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.28 | |||
Description
General part information
0640-0 Series
Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Press-Fit, Hex
Documents
Technical documentation and resources
No documents available
