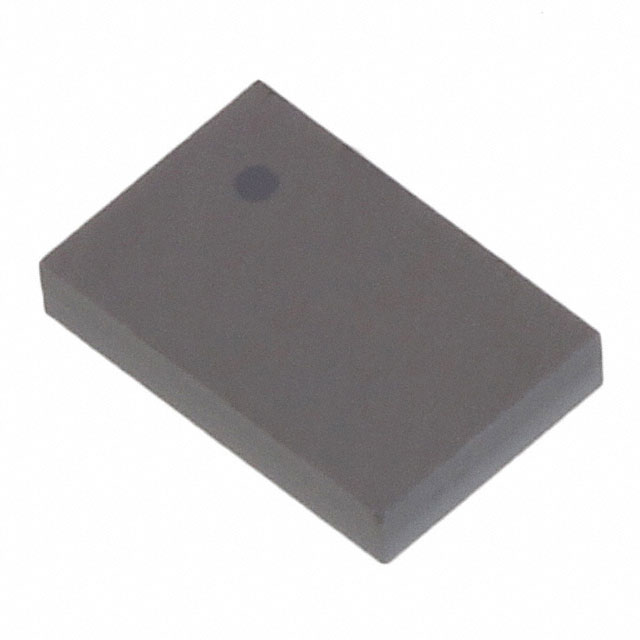

M24512-DFCS6TP/K

Active

STMicroelectronics

512KBIT SERIAL I2C BUS EEPROM WITH THREE CHIP ENABLE LINES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AN4653 +14

M24512-DFCS6TP/K

Active

STMicroelectronics

512KBIT SERIAL I2C BUS EEPROM WITH THREE CHIP ENABLE LINES

Deep-Dive with AI

DocumentsDatasheet AN4653 +14

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24512-DFCS6TP/K

Access Time	500 ns
Memory Format	EEPROM
Memory Interface	I2C
Memory Organization	64K x 8
Memory Size	64 kb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	WLCSP, 8-WFBGA
Supplier Device Package	8-WLCSP
Technology	EEPROM
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	5 ms

M24512-A125 Series

512Kbit Serial I2C bus EEPROM with configurable device address and software write protection registers

Part	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page	Memory Interface	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Format	Mounting Type	Access Time	Memory Type	Memory Organization	Memory Size	Package / Case [custom]	Package / Case [custom]	Grade	Qualification
STMicroelectronics M24512-WMN6TP	EEPROM	8-SOIC	85 °C	-40 °C	5 ms	I2C	8-SOIC	3.9 mm	0.154 in	2.5 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb
STMicroelectronics M24512-WDW6TP	EEPROM	8-TSSOP	85 °C	-40 °C	5 ms	I2C	8-TSSOP			2.5 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb	0.173 "	4.4 mm
STMicroelectronics M24512-DRDW6TP	EEPROM	8-TSSOP	85 °C	-40 °C	5 ms	I2C	8-TSSOP			1.8 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb	0.173 "	4.4 mm
STMicroelectronics M24512-WMW6TG	EEPROM	8-SO	85 °C	-40 °C	10 ms	I2C	8-SOIC	5.3 mm	0.209 "	2.5 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb
STMicroelectronics M24512-HRMN6P	EEPROM	8-SOIC	85 °C	-40 °C	10 ms	I2C	8-SOIC	3.9 mm	0.154 in	1.8 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb
STMicroelectronics M24512-HRDW6TP	EEPROM	8-TSSOP	85 °C	-40 °C	10 ms	I2C	8-TSSOP			1.8 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb	0.173 "	4.4 mm
STMicroelectronics M24512-DRMF3TG/K	EEPROM	8-MLP (2x3)	125 °C	-40 °C	4 ms	I2C	8-WFDFN Exposed Pad			1.8 V	5.5 V	EEPROM	Surface Mount	450 ns	Non-Volatile	64K x 8	64 kb			Automotive	AEC-Q100
STMicroelectronics M24512E-FMN6TP	EEPROM	8-SO	85 °C	-40 °C	4 ms	I2C	8-SOIC	3.9 mm	0.154 in	1.6 V	5.5 V	EEPROM	Surface Mount	450 ns	Non-Volatile	64K x 8	64 kb
STMicroelectronics M24512-DRMN8TP/K	EEPROM	8-SOIC	105 °C	-40 °C	4 ms	I2C	8-SOIC	3.9 mm	0.154 in	1.8 V	5.5 V	EEPROM	Surface Mount	450 ns	Non-Volatile	64K x 8	64 kb			Automotive	AEC-Q100
STMicroelectronics M24512-DFCS6TP/K	EEPROM	8-WLCSP	85 °C	-40 °C	5 ms	I2C	8-WFBGA WLCSP			1.7 V	5.5 V	EEPROM	Surface Mount	500 ns	Non-Volatile	64K x 8	64 kb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.17
		10	$ 1.04
		25	$ 0.99
		50	$ 0.95
		100	$ 0.92
		250	$ 0.88
		500	$ 0.85
		1000	$ 0.82
	Digi-Reel®	1	$ 1.17
		10	$ 1.04
		25	$ 0.99
		50	$ 0.95
		100	$ 0.92
		250	$ 0.88
		500	$ 0.85
		1000	$ 0.82
	Tape & Reel (TR)	2500	$ 0.65
		5000	$ 0.62
		7500	$ 0.61
Newark	Each (Supplied on Cut Tape)	1	$ 1.16
		10	$ 0.94
		25	$ 0.92
		50	$ 0.89
		100	$ 0.87
		250	$ 0.85
		500	$ 0.84
		1000	$ 0.81

Description

General part information

M24512-A125 Series

The M24512-A125 is a 512-Kbit serial EEPROM Automotive grade device operating up to 125 °C. The M24512-A125 is compliant with the very high level of reliability defined by the Automotive standard AEC-Q100 grade 1.

The device is accessed by a simple serial I2C compatible interface running up to 1 MHz.

The memory array is based on advanced true EEPROM technology (Electrically Erasable PROgrammable Memory). The M24512-A125 is a byte-alterable memory (64 K × 8 bits) organized as 512 pages of 128 byte in which the data integrity is significantly improved with an embedded Error Correction Code logic.
