EM 32-1B-LED

Active

Lascar Electronics

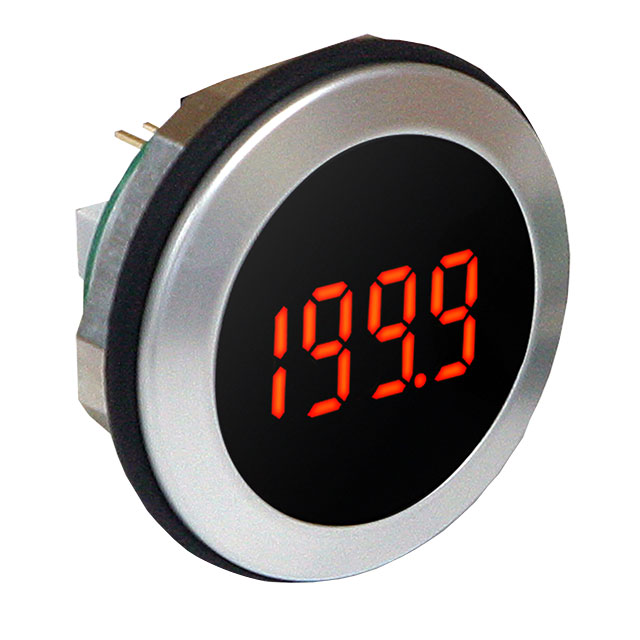

ROUND LED VOLTMETER

Search across all available documentation for this part.

Active

Lascar Electronics

ROUND LED VOLTMETER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM 32-1B-LED	EM 32 Series

Display Characters - Height	-	0.5 in
Display Characters - Height	-	12.7 mm
Display Characters - Height [y]	0.315 in	0.315 in
Display Characters - Height [y]	8 mm	8 mm
Display Type	LCD - Red Characters, Backlight	LCD - Red Characters, Backlight, LCD - Black Characters
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	0.2 VDC	0.2 - 105 VDC
Measuring Range [Min]	-200 mV	-200 - -40 mV
Measuring Type	Voltage	Voltage, Thermister
Number of Characters Per Row	3.5	3 - 3.5
Operating Temperature	-	-10 °C
Operating Temperature	-	50 °C
Panel Cutout Dimensions [diameter]	32.5 mm	32.5 mm
Termination Style	PC Pin	PC Pin
Type	Voltmeter	Voltmeter, Temperature Meter
Voltage - Supply [Max]	5.25 V	5.25 - 28 V
Voltage - Supply [Min]	4.75 V	3.5 - 4.75 V

ROUND LED VOLTMETER

Part	Display Characters - Height [y]	Display Characters - Height [y]	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row	Panel Cutout Dimensions [diameter]	Measuring Type	Termination Style	Type	Display Characters - Height [z]	Display Characters - Height [z]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Lascar Electronics EM 32-1B-LED	0.315 in	8 mm	IP67 - Dust Tight, Waterproof	4.75 V	5.25 V	LCD - Red Characters, Backlight	-200 mV	0.2 VDC	3.5	32.5 mm	Voltage	PC Pin	Voltmeter
Lascar Electronics EM 32-1B	0.315 in	8 mm	IP67 - Dust Tight, Waterproof	3.5 V	6.5 V	LCD - Black Characters	-200 mV	0.2 VDC	3.5	32.5 mm	Voltage	PC Pin	Voltmeter
Lascar Electronics EM 32-1900			IP67 - Dust Tight, Waterproof	4 V	28 V	LCD - Black Characters	-40 °C	105 °C	3	32.5 mm	Thermister	PC Pin	Temperature Meter	0.5 in	12.7 mm	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 81.99

General part information

Voltmeter LCD - Red Characters, Backlight Display Panel Mount
