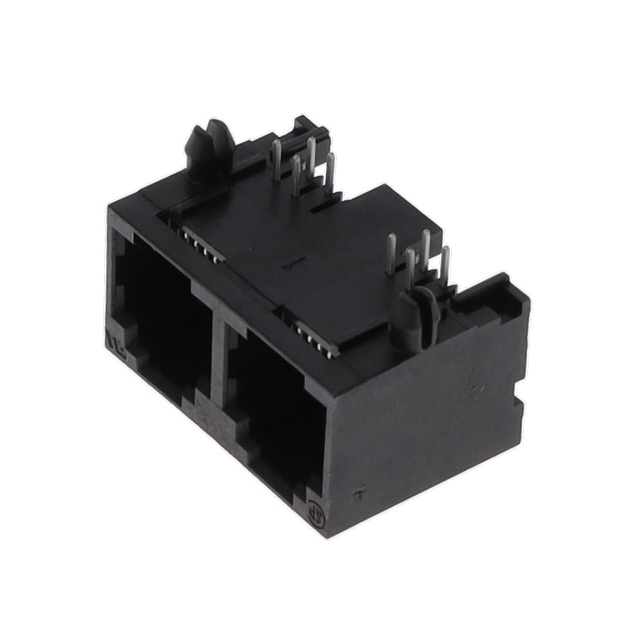

Specification	RJE0164002

Connector Type	RJ14, RJ11, Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Features	Board Lock
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	4
Number of Ports	2
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Orientation Angle	90 °
Orientation Direction	Right
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

RJE01 Series

Part	Contact Finish Thickness	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Features	Shielding	Contact Material	Connector Type	Number of Contacts	Number of Positions	LED Color	Termination	Number of Rows	Number of Ports	Contact Finish	Orientation Angle	Orientation Direction	Tab Direction	Mounting Type
Amphenol ICC (Commercial Products) RJE01G6002	15 µin	Thermoplastic	-55 °C	85 °C	Board Lock	Unshielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0166202	50 µin	Nylon PA Polyamide	-55 °C	85 °C	Board Lock	EMI Finger Shielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0114002	6 µin	Thermoplastic	-55 °C	85 °C	Board Lock	Unshielded	Phosphor Bronze	Jack RJ11 RJ14	4	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0116202	6 µin	Nylon PA Polyamide	-55 °C	85 °C	Board Lock	EMI Finger Shielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0166201	50 µin	Thermoplastic	-55 °C	85 °C	Board Lock	EMI Finger Shielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	1	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0112501	6 µin	Thermoplastic	-55 °C	85 °C	Board Lock	EMI Finger Shielded	Phosphor Bronze	Jack RJ11	2	6	Does Not Contain LED	Solder	1	1	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0114501	6 µin	Thermoplastic	-55 °C	85 °C	Board Lock	Shielded	Phosphor Bronze	Jack RJ11 RJ14	4	6	Does Not Contain LED	Solder	1	1	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0166001	50 µin	Nylon PA Polyamide	-55 °C	85 °C	Board Lock	Unshielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	1	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0116002	6 µin	Thermoplastic	-55 °C	85 °C	Board Lock	Unshielded	Phosphor Bronze	Jack RJ11 RJ12 RJ14 RJ25	6	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
Amphenol ICC (Commercial Products) RJE0164002	50 µin	Thermoplastic	0 °C	70 °C	Board Lock	Unshielded	Phosphor Bronze	Jack RJ11 RJ14	4	6	Does Not Contain LED	Solder	1	2	Gold	90 °	Right	Up	Through Hole
