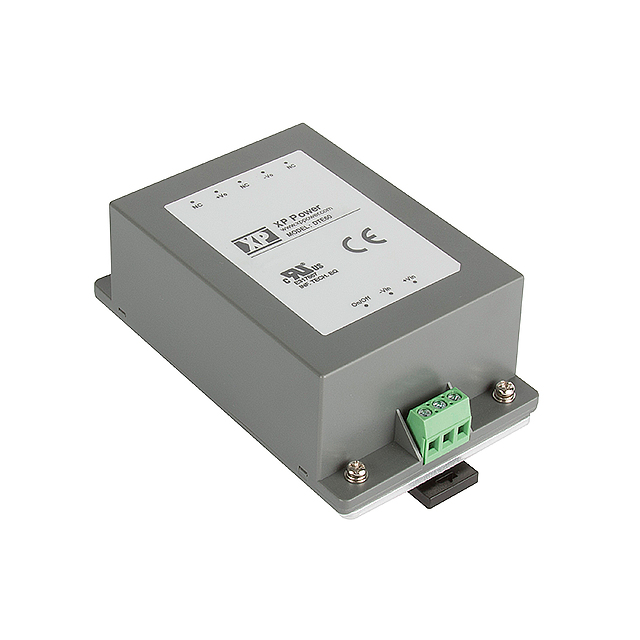

DTE6048S48-D

Active

XP POWER

DC/DC DIN RAIL SUPPLY 48V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DTE6048S48-D

Active

XP POWER

DC/DC DIN RAIL SUPPLY 48V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DTE6048S48-D

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	1.25 A
DC Voltage - Input (Max) [Max]	75 V
DC Voltage - Input (Min) [Min]	18 V
Efficiency	91 %
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	112 mm
Size / Dimension [x]	4.41 "
Size / Dimension [y]	67.8 mm
Size / Dimension [y]	2.67 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Voltage - Output 1	48 V

DTE60 Series

Part	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Approval Agency	Standard Number	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Input Type
XP POWER DTE6024S24	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	Enclosed	2.5 A	Chassis Mount	9 V	24 V	36 V	CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)
XP POWER DTE6048S24	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	Enclosed	2.5 A	Chassis Mount	18 V	24 V	75 V	CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)
XP POWER DTE6048S12	92 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	Enclosed	5 A	Chassis Mount	18 V	12 V	75 V	CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)
XP POWER DTE6048S24-D	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "		2.5 A			24 V		CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)	75 V	18 V	DC
XP POWER DTE6048S5V1	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	Enclosed	12 A	Chassis Mount	18 V	5.1 V	75 V	CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)
XP POWER DTE6024S24-D	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "		2.5 A			24 V		CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)	36 V	9 V	DC
XP POWER DTE6024S48-D	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "		1.25 A			48 V		CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)	36 V	9 V	DC
XP POWER DTE6024S48	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	Enclosed	1.25 A	Chassis Mount	9 V	48 V	36 V	CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)
XP POWER DTE6024S12-D	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "		5 A			12 V		CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)	36 V	9 V	DC
XP POWER DTE6048S48-D	91 %	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "		1.25 A			48 V		CB CE cURus	62368-1	1	85 °C	-40 °C	ITE (Commercial)	75 V	18 V	DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 92.68

Description

General part information

DTE60 Series

DC/DC DIN RAIL SUPPLY 48V 60W

Documents

Technical documentation and resources
