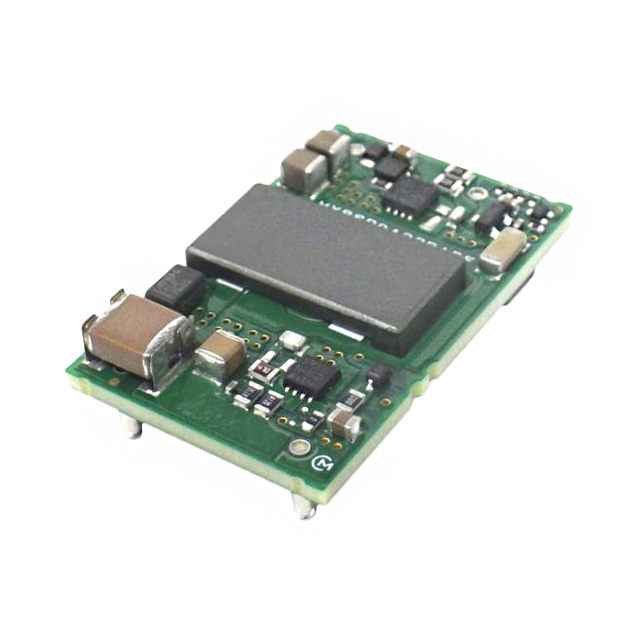

MYBSP0055AABF

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 26W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 26W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 26W

Part	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Applications	Features	Type	Power (Watts)	Voltage - Output 1	Number of Outputs
Murata Power Solutions Inc. MYBSP0055AABF	90.5 %	57 V	85 °C	-40 °C	2250 VDC	42.5 V	Surface Mount	5.1 A	0.88 "	35.5 mm	22.4 mm	1.4 in	10.6 mm	0.42 in	ITE (Commercial)	OCP, SCP, UVLO	Isolated PoE Module	26 W	5 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated PoE Module DC DC Converter 1 Output 5V 5.1A 42.5V - 57V Input
