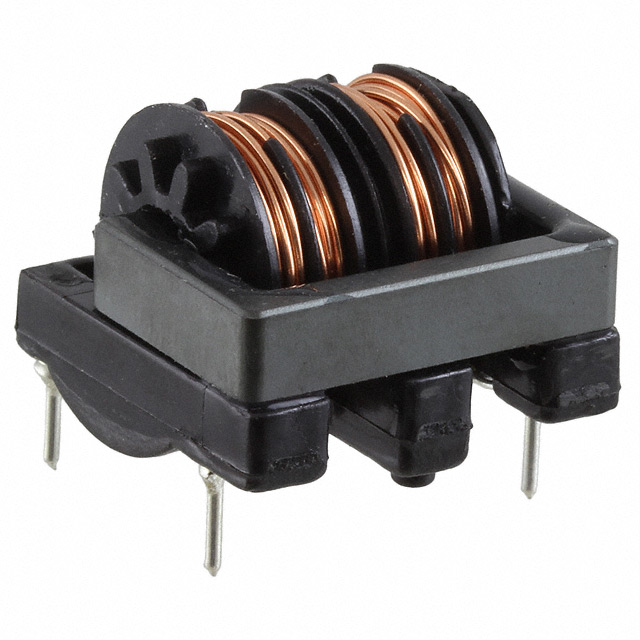

SS11H-R17036-CH - SS11H-R17036-CH

SS11H-R17036-CH

Active
KEMET

CMC 3.6MH 1.7A 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+1
SS11H-R17036-CH - SS11H-R17036-CH

SS11H-R17036-CH

Active
KEMET

CMC 3.6MH 1.7A 2LN TH

Deep-Dive with AI

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSS11H-R17036-CH
DC Resistance (DCR) (Max) [Max]190 mOhm
Filter TypePower Line
Height (Max) [Max]17 mm
Height (Max) [Max]0.669 in
Inductance @ Frequency3.6 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / CaseHorizontal
Package / Case4 Lead
Size / Dimension [x]0.827 in
Size / Dimension [x]21 mm
Size / Dimension [y]0.807 in
Size / Dimension [y]20.5 mm
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.12
10$ 1.70
25$ 1.38
50$ 1.34
100$ 1.31
250$ 1.27
800$ 1.26
1600$ 1.12
5600$ 1.03
NewarkEach 500$ 1.24
1000$ 1.08
2500$ 0.96

Description

General part information

SS11H Series

3.6 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 190mOhm
