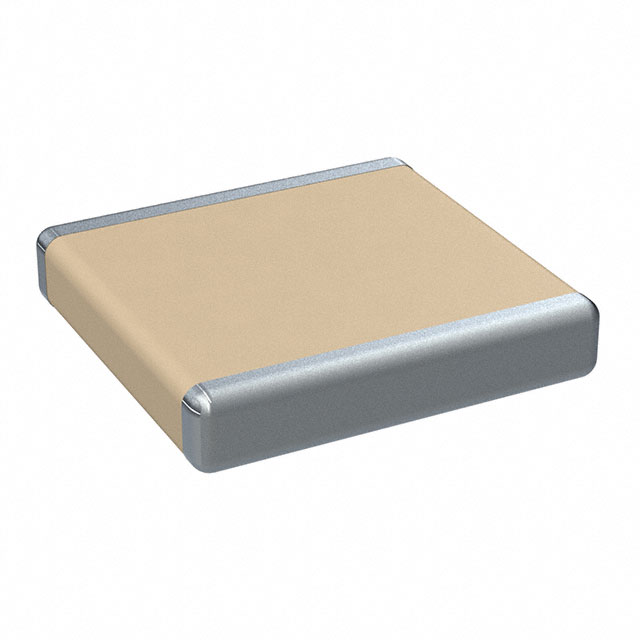

C2225T474K1RAL7800

Active

KEMET

CAP CER 0.47UF 100V X7R 2225

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.47UF 100V X7R 2225

Technical Specifications

Parameters and characteristics for this part

Specification	C2225T474K1RAL7800

Applications	Bypass, Decoupling, High Reliability
Capacitance	0.47 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Ratings	COTS
Size / Dimension [x]	5.6 mm
Size / Dimension [x]	0.22 in
Size / Dimension [y]	0.252 in
Size / Dimension [y]	6.4 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	1.25 mm
Thickness (Max) [Max]	0.049 "
Tolerance	10 %
Voltage - Rated	100 V

Part	Ratings	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Voltage - Rated	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Tolerance	Temperature Coefficient
KEMET C2225T474K1RAL7800	COTS	Bypass Decoupling High Reliability	-55 °C	125 °C	1.25 mm	0.049 "	2225	5763 Metric	100 V	MLCC Surface Mount	0.252 in	5.6 mm	0.22 in	6.4 mm	0.47 µF	10 %	X7R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.79
	Digi-Reel®	1	$ 6.79
	Tape & Reel (TR)	1000	$ 3.66

General part information

0.47 µF ±10% 100V Ceramic Capacitor X7R 2225 (5763 Metric)
