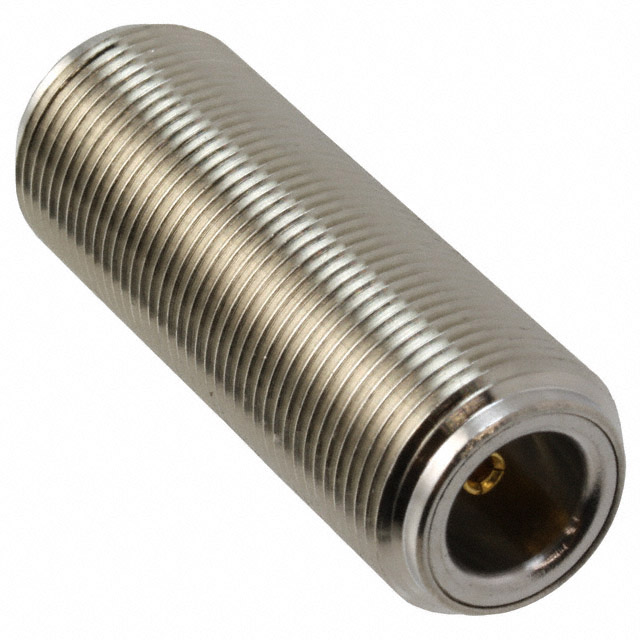

172123-10

Active

Amphenol RF

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST RCP/RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST RCP/RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	172123-10

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Plating	Body Finish	Body Material	Frequency - Max [Max]	Center Contact Material	Impedance	Mounting Type	Conversion Type	Center Gender	Style	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Convert To (Adapter End)	Dielectric Material	Adapter Series
Amphenol RF 172123-10	Gold	White Bronze	Brass	11 GHz	Phosphor Bronze	50 Ohms	Free Hanging (In-Line)	Same Series	Female to Female	Straight	Female Socket N Jack	-65 ░C	165 °C	Jack to Jack	Female Socket N Jack	Polytetrafluoroethylene (PTFE)	N to N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
