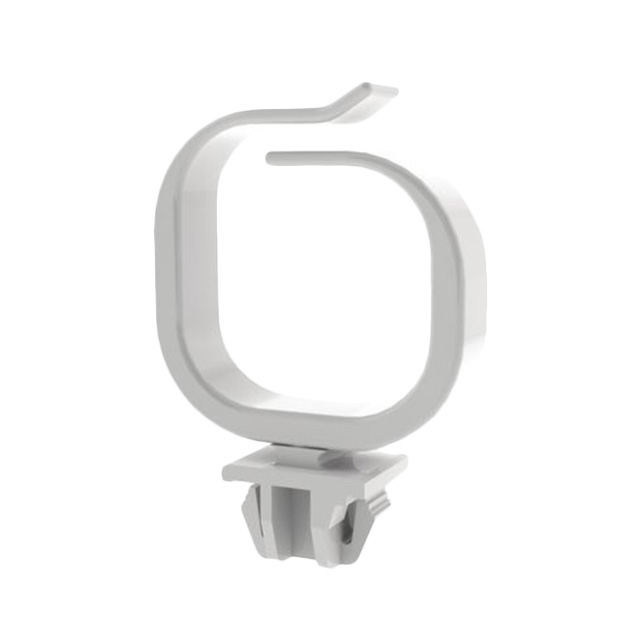

OFNS13-S9.5M-19

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	OFNS13-S9.5M-19

Color	Natural
Features	Flame Retardant
Height [z]	28.19 mm
Height [z]	1.11 in
Length	26.92 mm
Length	1.06 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Arrowhead
Opening Size [x]	0.83 in
Opening Size [x]	21.08 mm
Opening Size [z]	0.75 in
Opening Size [z]	19.05 mm
Panel Hole Size	0.374 in
Panel Hole Size	9.5 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Max]	2 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	Clip, Wire Saddle
Type Attributes	Round
Width [x]	6.86 mm
Width [x]	0.27 in

Part	Height [z]	Height [z]	Color	Material Flammability Rating	Type	Opening Size [x]	Opening Size [z]	Opening Size [x]	Opening Size [z]	Panel Hole Size	Panel Hole Size	Type Attributes	Material	Mounting Type	Length	Length	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Width [x]	Width [x]	Panel Hole Size	Features
Essentra Access Solutions OFNS-13-250-01	28.19 mm	1.11 in	Natural	UL94 V-2	Clip Wire Saddle	0.83 in	0.75 in	21.08 mm	19.05 mm	6.35 mm	0.25 in	Round	Polyamide (PA66) Nylon 6/6	Arrowhead Winged	26.92 mm	1.06 in	0.079 "	0.031 "	2 mm	0.79 mm	6.86 mm	0.27 in
Essentra Access Solutions OFNS13-S9.5M-19	28.19 mm	1.11 in	Natural	UL94 V-0	Clip Wire Saddle	0.83 in	0.75 in	21.08 mm	19.05 mm		9.5 mm	Round	Polyamide (PA66) Nylon 6/6	Arrowhead	26.92 mm	1.06 in	0.079 "	0.031 "	2 mm	0.79 mm	6.86 mm	0.27 in	0.374 in	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead 0.830" L x 0.750" H (21.08mm x 19.05mm)
