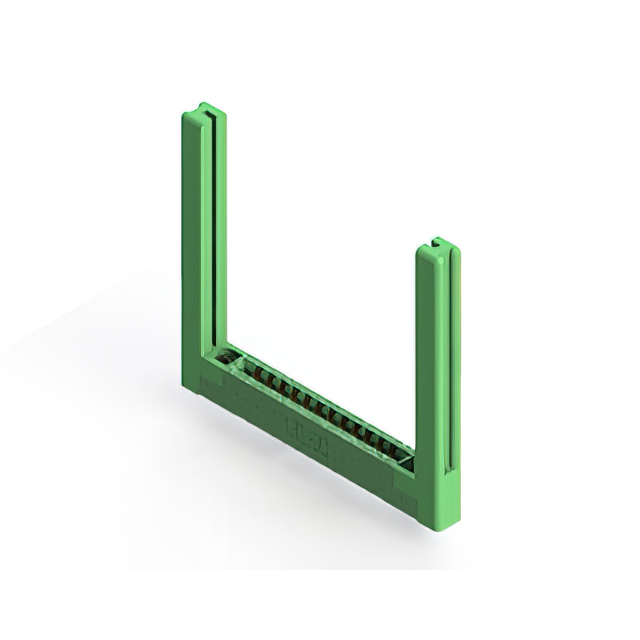

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-012-521-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-012-521-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-012 Series

Part	Pitch [x]	Pitch [x]	Card Type	Number of Positions	Termination Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Number of Positions/Bay/Row [custom]	Contact Type	Contact Material	Features
EDAC Inc. 306-012-521-104	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-521-103	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Panel Mount Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-520-101	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green				Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-500-168	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder Eyelet(s)	-40 °C	105 ░C	Green		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2		10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 306-012-520-158	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Panel Mount Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 306-012-521-101	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green				Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-521-108	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Panel Mount Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-400-102	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder Eyelet(s)	-40 °C	105 ░C	Green	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2				Tin	Female	12	Cantilever	Copper Alloy
EDAC Inc. 306-012-521-158	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Panel Mount Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 306-012-520-178	0.156 in	3.96 mm	Non Specified - Dual Edge	24	1	Solder	-40 °C	105 ░C	Green		4-40 Flush Mount Threaded Insert Top Opening		Polyester Thermoplastic	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Panel Mount Through Hole	10 Áin	0.25 Ám	Gold	Female	12	Cantilever	Copper Alloy	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.58
Newark	Each	1	$ 12.55
		100	$ 8.34
		250	$ 6.95
		500	$ 6.20
		1000	$ 5.23

Description

General part information

306-012 Series

24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
