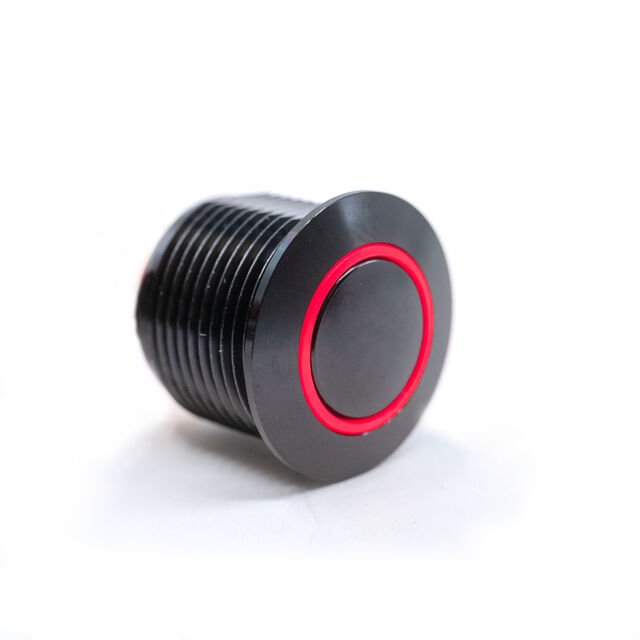

PVA6RE24111

Unknown

E-Switch

SWITCH PUSHBUTTON SPST 2A 36V

Deep-Dive with AI

Search across all available documentation for this part.

PVA6RE24111

Unknown

E-Switch

SWITCH PUSHBUTTON SPST 2A 36V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PVA6RE24111

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Fixed LED Ring
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.7 VDC, 2.5 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

pva6 Series

Part	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination Style	Voltage Rating - DC	Features	Mounting Type	Illumination Type, Color	Current Rating (Amps)	Type	Switch Function	Mechanical Life	Panel Cutout Dimensions [diameter]	Circuit	Illumination Voltage (Nominal)	Electrical Life	Color - Actuator/Cap	Actuator Type	Illumination Voltage (Nominal)	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]
E-Switch PVA6LRE21211	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	LED Red	2 A	Anti-Vandal Illuminated	Off-On	100000 Cycles	16 mm	SPST	1.7 VDC 2.5 VDC	100000 Cycles	Clear	Button Domed Round
E-Switch PVA6RPW41G1		-20 C	70 °C	IP67 - Dust Tight Waterproof	Wire Leads	36 VDC		Panel Mount Front	Green/Red LED	2 A	Anti-Vandal Illuminated	Off-Mom	1000000 Cycles	16 mm	SPST-NO		200000 Cycles	Black	Button Round	1.7 VDC 2.8 VDC
E-Switch PVA6LRPW12G1		-20 C	70 °C	IP67 - Dust Tight Waterproof	Wire Leads	36 VDC		Panel Mount Front	Green/Red LED	2 A	Anti-Vandal Illuminated	Off-On	100000 Cycles	16 mm	SPST		100000 Cycles	Clear	Button Round	3 VDC
E-Switch PVA6HE24S11	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	LED Red	2 A	Anti-Vandal Illuminated	Off-Mom	1000000 Cycles	16 mm	SPST-NO	1.7 VDC 2.5 VDC	200000 Cycles	Silver	Button Round
E-Switch PVA6LRE21131	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	Green LED	2 A	Anti-Vandal Illuminated	Off-On	100000 Cycles	16 mm	SPST		100000 Cycles	Black	Button Domed Round		2.8 VDC	3.7 VDC
E-Switch PVA6LRE212G1	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	Green/Red LED	2 A	Anti-Vandal Illuminated	Off-On	100000 Cycles	16 mm	SPST		100000 Cycles	Clear	Button Domed Round		1.7 VDC 2.8 VDC	2.5 VDC 3.7 VDC
E-Switch PVA6LRE21111	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	LED Red	2 A	Anti-Vandal Illuminated	Off-On	100000 Cycles	16 mm	SPST	1.7 VDC 2.5 VDC	100000 Cycles	Black	Button Domed Round
E-Switch PVA6RP24101	Power Symbol	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC		Panel Mount Front	LED White	2 A	Anti-Vandal Illuminated	Off-Mom	1000000 Cycles	16 mm	SPST-NO		200000 Cycles	Black	Button Domed Round		2.8 VDC	3.7 VDC
E-Switch PVA6RE24111	No Marking	-20 C	70 °C	IP67 - Dust Tight Waterproof	Solder Lug	36 VDC	Fixed LED Ring	Panel Mount Front	LED Red	2 A	Anti-Vandal Illuminated	Off-Mom	1000000 Cycles	16 mm	SPST-NO	1.7 VDC 2.5 VDC	200000 Cycles	Black	Button Domed Round
E-Switch PVA6RPW41K1	Power Symbol	-20 C	70 °C	IP67 - Dust Tight Waterproof	Wire Leads	36 VDC		Panel Mount Front	LED Green/Orange	2 A	Anti-Vandal Illuminated	Off-Mom	1000000 Cycles	16 mm	SPST-NO		200000 Cycles	Black	Button Domed Round		1.7 VDC 2.8 VDC	2.5 VDC 3.7 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

pva6 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
