BHDL-8-01
ActiveEssentra Access Solutions

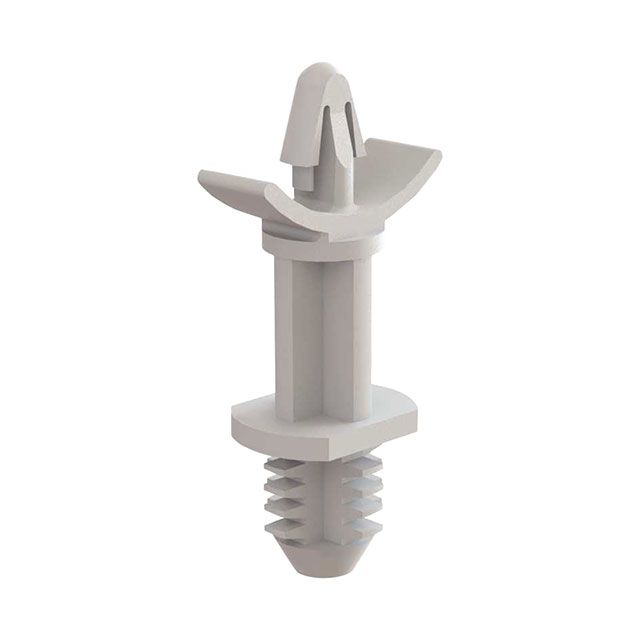

BRD SPT SNAP LOCK BARBED 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
BHDL-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK BARBED 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BHDL-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Features | Blind Hole Mating |
| Holding Type | Snap Lock |
| Length - Overall [x] | 29.8 mm |
| Length - Overall [x] | 1.173 in |
| Material | Nylon |
| Mounting Hole Diameter | 7.92 mm |
| Mounting Hole Diameter | 0.3125 " |
| Mounting Hole Diameter | 0.312 " |
| Mounting Panel Thickness | 0.25 " |
| Mounting Panel Thickness | 6.35 mm |
| Mounting Panel Thickness | 0.25 " |
| Mounting Type | Barbed Fastener |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Panel Thickness [Max] | 1.98 mm |
| Support Panel Thickness [Max] | 0.078 " |
| Support Panel Thickness [Min] | 0.79 mm |
| Support Panel Thickness [Min] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 5 | $ 0.20 | |||
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
Description
General part information
BHDL-8 Series
Board Support Snap Lock / Barbed Fastener Nylon 0.500" (12.70mm) 1/2"
