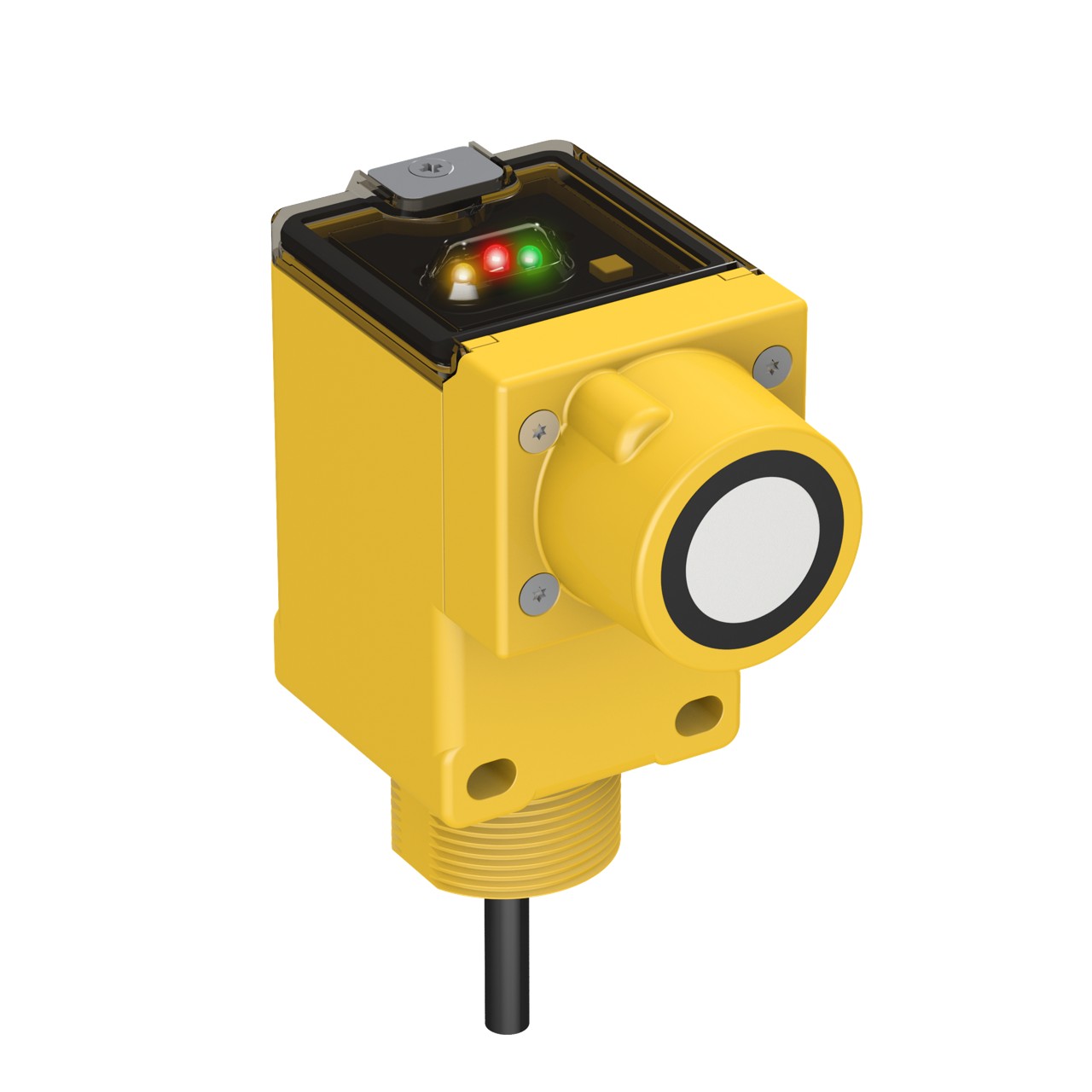

Q45UBB63BC

Active

BANNER ENGINEERING

DISCRETE Q45U SERIES: PROXIMITY MODE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DISCRETE Q45U SERIES: PROXIMITY MODE

Technical Specifications

Parameters and characteristics for this part

Specification	Q45UBB63BC

Indicator [custom]	LED
Ingress Protection	IP67, NEMA 6P
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	NPN/PNP
Package / Case	Module
Sensing Distance [Max]	3 m
Sensing Distance [Max]	118.11 in
Sensing Distance [Min]	9.843 "
Sensing Distance [Min]	250 mm
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Indicator [custom]	Sensor Type	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Shielding	Material - Body	Package / Case
BANNER ENGINEERING Q45UBB63BC	LED	Ultrasonic	3 m	118.11 in	9.843 "	250 mm	IP67 NEMA 6P	70 °C	-25 °C	Cable Leads	NPN/PNP	12 V	24 V	Unshielded	Polybutylene Terephthalate (PBT)	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 616.00
Newark	Each	1	$ 647.00

General part information

DISCRETE Q45U SERIES: PROXIMITY MODE
