2132 SV005

Active

ALPHA WIRE

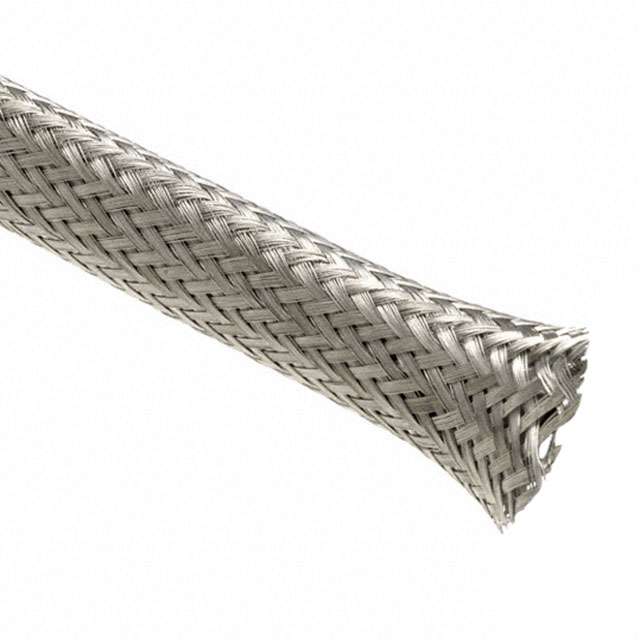

GROUND BRAID TUBE 0.06"DIAX100'

Search across all available documentation for this part.

Active

ALPHA WIRE

GROUND BRAID TUBE 0.06"DIAX100'

Technical Specifications

Parameters and characteristics commom to parts in this series

GROUND BRAID TUBE 0.06"DIAX100'

Part	Length [x]	Length [x]	Wire Gauge - Ends	Number of Carriers	Size, Supplied [diameter]	Size, Supplied [diameter]	Size, Supplied [diameter]	Type	Material	Length	Length
ALPHA WIRE 2132 SV005	100 ft	30.48 m	34 AWG	16	0.062 in	1/16	1.57 mm	Tubular	Copper, Tinned
ALPHA WIRE 2132 SV002			34 AWG	16	0.062 in	1/16	1.57 mm	Tubular	Copper, Tinned	152.4 m	6000 in
ALPHA WIRE 2132 SV001			34 AWG	16	0.062 in	1/16	1.57 mm	Tubular	Copper, Tinned	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tubular Ground Braid 0.062" (1.57mm, 1/16") - Inner Dia X 100.0' (30.48m) 34 AWG
