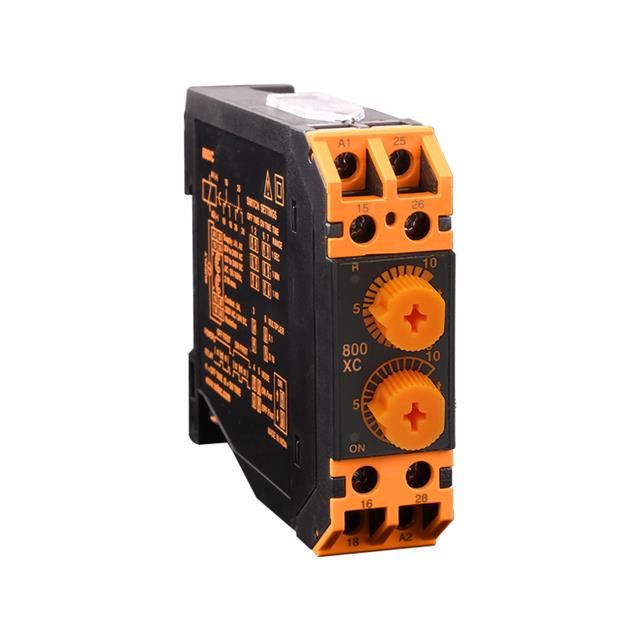

800XC-CU-E

Active

Selec Controls USA Inc.

RELAY TIME DELAY 10HR 5A 250V

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

RELAY TIME DELAY 10HR 5A 250V

Technical Specifications

Parameters and characteristics for this part

RELAY TIME DELAY 10HR 5A 250V

Part	Contact Rating @ Voltage	Circuit	Function	Termination Style	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Relay Type	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]
Selec Controls USA Inc. 800XC-CU-E	5 A, 24 VDC, 250 VAC	DPDT (2 Form C)	Repeat Cycle	Screw Terminal	Screwdriver Slot	240 VAC, 240 VDC	12 V, 20 VAC	DIN Rail	Mechanical Relay	Input Voltage	0 s	10 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Repeat Cycle Time Delay Relay DPDT (2 Form C) 0 Sec ~ 10 Hrs Delay 5A @ 250VAC/24VDC DIN Rail
