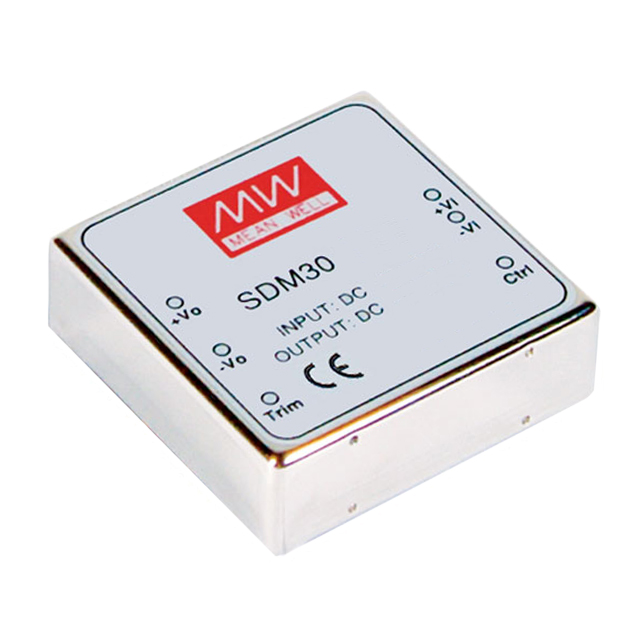

SDM30-24S15

Active

MEAN WELL USA Inc.

DC DC CONVERTER 15V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDM30-24S15

Active

MEAN WELL USA Inc.

DC DC CONVERTER 15V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDM30-24S15

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	83 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	8-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	16 mm
Size / Dimension [z]	0.63 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V

SDM30 Series

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Type	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Mounting Type	Number of Outputs	Approval Agency	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Features
MEAN WELL USA Inc. SDM30-12S03	18 V	1000 V	8-DIP Module 6 Leads	Isolated Module	3.3 V	17 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	77 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)
MEAN WELL USA Inc. SDM30-48S05	72 V	1000 V	8-DIP Module 6 Leads	Isolated Module	5 V	25 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	80 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)	36 V
MEAN WELL USA Inc. SDM30-48S03	72 V	1000 V	8-DIP Module 6 Leads	Isolated Module	3.3 V	17 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	80 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)	36 V
MEAN WELL USA Inc. SDM30-24S05	36 V	1000 V	8-DIP Module 6 Leads	Isolated Module	5 V	25 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	79 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)	18 V
MEAN WELL USA Inc. SDM30-12S3	18 V	1000 V	8-DIP Module	Isolated Module	3.3 V	17 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	77 %	Through Hole	1		5 A	ITE (Commercial)		OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-12S15	18 V	1000 V	8-DIP Module	Isolated Module	15 V	26 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	80 %	Through Hole	1		1.7 A	ITE (Commercial)		OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-12S05	18 V	1000 V	8-DIP Module 6 Leads	Isolated Module	5 V	25 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	77 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)
MEAN WELL USA Inc. SDM30-24S15	36 V	1000 V	8-DIP Module	Isolated Module	15 V	30 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	83 %	Through Hole	1		2 A	ITE (Commercial)	18 V	OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-24S03	36 V	1000 V	8-DIP Module 6 Leads	Isolated Module	3.3 V	17 W	85 °C	-25 °C	16 mm	50.8 mm	50.8 mm	2 in	2 in	0.63 in	79 %	Through Hole	1	CE EAC UKCA	5 A	ITE (Commercial)	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 30.40
		5	$ 28.66
		10	$ 27.94

Description

General part information

SDM30 Series

Isolated Module DC DC Converter 1 Output 15V 2A 18V - 36V Input
