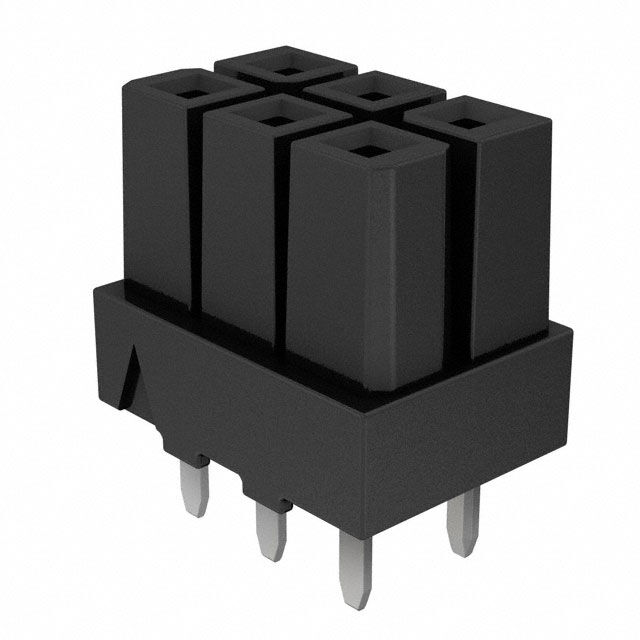

IPBS-103-01-T-D

Active

Samtec Inc.

CONN HDR 6POS 0.165 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 6POS 0.165 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Height	Insulation Height	Mounting Type	Contact Type	Termination	Contact Material	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Connector Type	Insulation Material	Fastening Type	Insulation Color	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Length - Post	Contact Length - Post	Features
Samtec Inc. IPBS-103-01-T-D	12.2 mm	0.48 in	Through Hole	Female Socket	Solder	Phosphor Bronze	2	4.2 mm	0.165 in	Tin	400 VAC 565 VDC	Header	Liquid Crystal Polymer (LCP)	Push-Pull	Black	Square	4.2 mm	0.165 in	All	105 ░C	-55 °C	6	3.94 mm	0.155 "
Samtec Inc. IPBS-103-01-T-S-GP	12.2 mm	0.48 in	Through Hole	Female Socket	Solder	Phosphor Bronze	1	4.2 mm	0.165 in	Tin	400 VAC 565 VDC	Header	Liquid Crystal Polymer (LCP)	Push-Pull	Black	Square			All	105 ░C	-55 °C		3.94 mm	0.155 "	Guide Pin
Samtec Inc. IPBS-103-01-T-D-GP	12.2 mm	0.48 in	Through Hole	Female Socket	Solder	Phosphor Bronze	2	4.2 mm	0.165 in	Tin	400 VAC 565 VDC	Header	Liquid Crystal Polymer (LCP)	Push-Pull	Black	Square	4.2 mm	0.165 in	All	105 ░C	-55 °C	6	3.94 mm	0.155 "	Guide Pin
Samtec Inc. IPBS-103-01-T-S	12.2 mm	0.48 in	Through Hole	Female Socket	Solder	Phosphor Bronze	1	4.2 mm	0.165 in	Tin	400 VAC 565 VDC	Header	Liquid Crystal Polymer (LCP)	Push-Pull	Black	Square			All	105 ░C	-55 °C		3.94 mm	0.155 "
