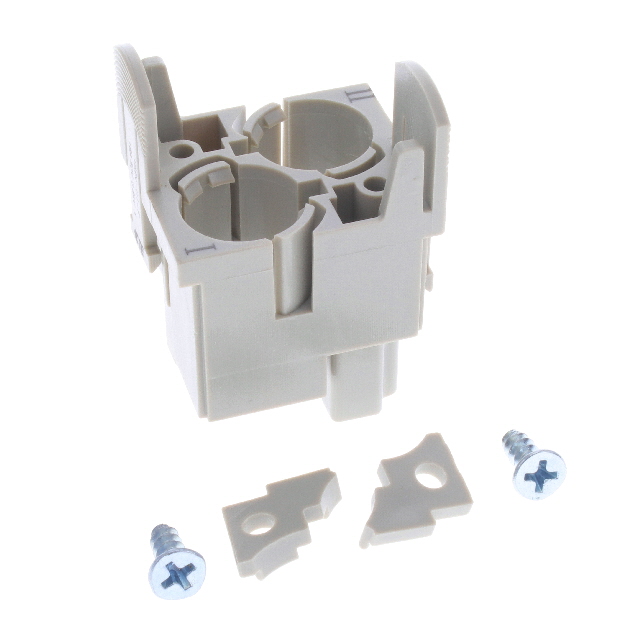

T2111027201-000
ActiveTE Connectivity AMP Connectors
HMN-Q1-F 16A
Deep-Dive with AI
Search across all available documentation for this part.
T2111027201-000
ActiveTE Connectivity AMP Connectors
HMN-Q1-F 16A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2111027201-000 | T211 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | Module | Module without Contacts, USB, Module, RJ45 |
| Contact Material | - | Copper Alloy |
| Contact Type | - | DDM, CDM, CEF, DEF, CH, DAF, CAF, CNF, CSF, CMF, DMF, DDF, CDF, CSM, CEM, DEM, DMM, CMM, CAM, DAM |
| Current Rating (Amps) | - | 5 - 200 A |
| Gender | - | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | - | 1 - 20 |
| Operating Temperature [Max] | 125 °C | 70 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Style | Bottom Entry | Bottom Entry |
| Termination Style | - | Crimp, Tension Clamp |
| Voltage Rating | - | 50 - 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.51 | |
| 12 | $ 3.07 | |||
| 30 | $ 2.99 | |||
| 54 | $ 2.93 | |||
| 102 | $ 2.83 | |||
T211 Series
MODULE MALE 12POS HMN-012-M
| Part | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Positions | Contact Type | Voltage Rating | Housing Material | Material Flammability Rating | Termination Style | Connector Type | Color | Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2111122101-000 | Male | 125 °C | -40 °C | 10 A | 12 | CDM, DDM | 250 VDC | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111062201-000 | Female | 125 °C | -40 °C | 16 A | 6 | CEF, DEF | 500 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111013101-000 | Male | 125 °C | -40 °C | 200 A | 1 | CH | 1000 VDC | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | Gray | ||
TE Connectivity AMP Connectors T2114000201-007 | Female | 70 °C | -40 °C | 4 | 50 V | Polycarbonate (PC) | Crimp | Module, USB | Gray | |||||
TE Connectivity AMP Connectors T2111027101-002 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry | |||||||||
TE Connectivity AMP Connectors T2111202201-000 | Female | 125 °C | -40 °C | 16 A | 20 | CEF, DEF | 500 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2113000201-000 | Female | 70 °C | -40 °C | 8 | 50 V | Polycarbonate (PC) | UL94 V-0 | Module, RJ45 | ||||||
TE Connectivity AMP Connectors T2111502201-000 | Female | 125 °C | -40 °C | 5 A | CAF, DAF | 50 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2110052101-000 | Male | 125 °C | -40 °C | 16 A | 400 V | Polycarbonate (PC) | UL94 V-0 | Tension Clamp | Module | Gray | Copper Alloy | |||
TE Connectivity AMP Connectors T2111202201-A00 | Female | 20 | 500 V | UL94 V-0 | Crimp | Module without Contacts | ||||||||
TE Connectivity AMP Connectors T2111028201-000 | Female | 125 °C | -40 °C | 100 A | 2 | CNF | 1000 VDC | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111202201-B00 | Female | 20 | 500 V | UL94 V-0 | Crimp | Module without Contacts | ||||||||
TE Connectivity AMP Connectors T2111082201-200 | Female | 125 °C | -40 °C | 16 A | 8 | CEF, DEF | 400 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111020201-000 | Female | 125 °C | -40 °C | 70 A | 2 | CSF | 1000 VDC | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111032201-000 | Female | 125 °C | -40 °C | 40 A | CMF, DMF | 690 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2111202101-A00 | Male | 20 | 500 V | UL94 V-0 | Crimp | Module without Contacts | ||||||||
TE Connectivity AMP Connectors T2113000101-107 | Male | 70 °C | -40 °C | 8 | 50 V | Polycarbonate (PC) | Crimp | Module, RJ45 | Gray | |||||
TE Connectivity AMP Connectors T2111172201-000 | Female | 125 °C | -40 °C | 10 A | CDF, DDF | 160 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2111082201-100 | Female | 125 °C | -40 °C | 16 A | 8 | CEF, DEF | 400 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111252201-000 | Female | 125 °C | -40 °C | 5 A | CAF, DAF | 50 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2111027101-001 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry | |||||||||
TE Connectivity AMP Connectors T2111027101-000 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry | |||||||||
TE Connectivity AMP Connectors T2111020101-000 | Male | 125 °C | -40 °C | 200 A | 2 | CSM | 1000 VDC | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2114000101-007 | Male | 70 °C | -40 °C | 4 | 50 V | Polycarbonate (PC) | Crimp | Module, USB | Gray | |||||
TE Connectivity AMP Connectors T2111027201-001 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry | |||||||||
TE Connectivity AMP Connectors T2111172101-000 | Male | 125 °C | -40 °C | 10 A | CDM, DDM | 160 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2111027201-000 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry | |||||||||
TE Connectivity AMP Connectors T2111063101-000 | Male | 125 °C | -40 °C | 16 A | 6 | CEM, DEM | 830 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111042101-000 | Male | 125 °C | -40 °C | 40 A | 4 | CMM, DMM | 830 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2113000201-007 | Female | 70 °C | -40 °C | 8 | 50 V | Polycarbonate (PC) | Crimp | Module, RJ45 | Gray | |||||
TE Connectivity AMP Connectors T2111202101-000 | Male | 125 °C | -40 °C | 16 A | 20 | CEM, DEM | 500 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | |||
TE Connectivity AMP Connectors T2111252101-000 | Male | 125 °C | -40 °C | 5 A | CAM, DAM | 50 V | Polycarbonate (PC) | UL94 V-0 | Crimp | Module without Contacts | ||||
TE Connectivity AMP Connectors T2111027201-002 | 125 °C | -40 °C | Polycarbonate (PC) | Module | Bottom Entry |
Description
General part information
T211 Series
Module Connector Bottom Entry
