RV18-10Q

Active

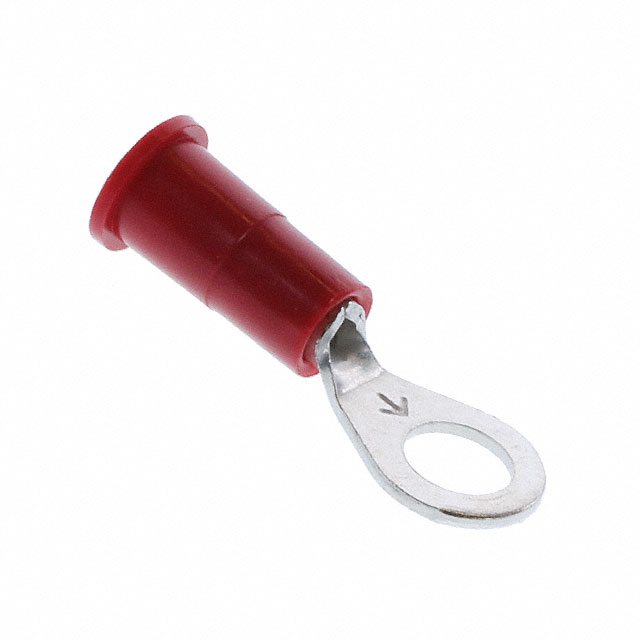

RING TONGUE TERMINAL, M5, #10, 18 AWG, HIGHLAND SERIES, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RV18-10Q

Active

RING TONGUE TERMINAL, M5, #10, 18 AWG, HIGHLAND SERIES, RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.66
		30	$ 0.60
		50	$ 0.57
		100	$ 0.55
		250	$ 0.50
		500	$ 0.47
		1000	$ 0.39
		2500	$ 0.36
Newark	Pack of 25	1	$ 12.57

Description

General part information

RV18 Series

Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RV18-10Q	RV18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Butted Seam	Butted Seam
Insulation	Insulated	Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall	23.62 mm	23.62 mm
Length - Overall	-	20.32 mm
Length - Overall [x]	0.93 in	0.8 - 0.93 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	10 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	7.87 mm	7.87 mm
Width - Outer Edges	-	6.35 - 11.94 mm
Width - Outer Edges [y]	0.31 in	0.25 - 0.47 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

RV18 Series

RING VINYL INSULATED HIGHLAND BAG 25/BAG

Part	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter [diameter]	Color	Thickness	Thickness	Stud/Tab Size	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Insulation	Mounting Type	Contact Material	Terminal Type	Contact Finish	Stud/Tab Size	Width - Outer Edges	Length - Overall [x]	Length - Overall	Length - Overall [x]
3M RV18-14Q	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	0.25 Stud	Butted Seam	0.47 in	11.94 mm	Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin
3M RV18-8Q	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm		Butted Seam	0.31 in		Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin	8 Stud	7.87 mm	0.93 in	23.62 mm
3M RV18-8C	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm		Butted Seam	0.31 in		Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin	8 Stud	7.87 mm	0.93 in	23.62 mm
3M RV18-10Q	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	10 Stud	Butted Seam	0.31 in		Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin		7.87 mm	0.93 in	23.62 mm
3M RV18-14C	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	0.25 Stud	Butted Seam	0.47 in	11.94 mm	Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin
3M RV18-6C	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	6 Stud	Butted Seam	0.25 "	6.35 mm	Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin			0.8 in		20.32 mm
3M RV18-10C	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	10 Stud	Butted Seam	0.31 in		Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin		7.87 mm	0.93 in	23.62 mm
3M RV18-10L	Crimp	22 AWG	17.5 AWG	3.68 mm	0.145 "	Red	0.03 in	0.76 mm	10 Stud	Butted Seam	0.31 in		Vinyl	Insulated	Free Hanging (In-Line)	Copper, ETP	Circular	Tin		7.87 mm	0.93 in	23.62 mm
