Technical Specifications
Parameters and characteristics for this part
| Specification | EVLPWD5T60 |
|---|---|
| Contents | Board(s) |
| Function | Motor Controller/Driver |
| Type | Power Management |
| Utilized IC / Part | PWD5T60 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVLPWD5T60 Series

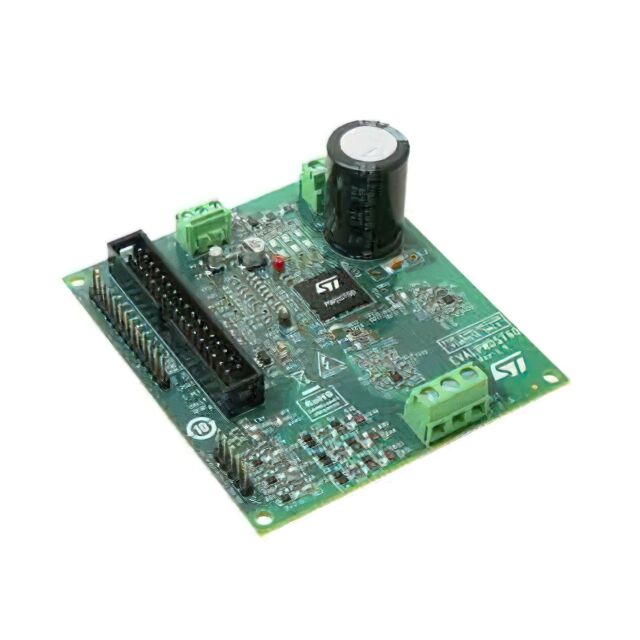

The EVLPWD5T60 evaluation board is a 3-phase power board that allows to evaluate all of the PWD5T60 features.
The board is designed to support a three-shunt or a single-shunt current sensing topology.
A strip connector allows easy interfacing with an MCU control board. The 34-pin ST morpho allows to connect the EVLPWD5T60 board to an STM32 Nucleo board through the X-NUCLEO-IHM09M1 motor control connector expansion board.
