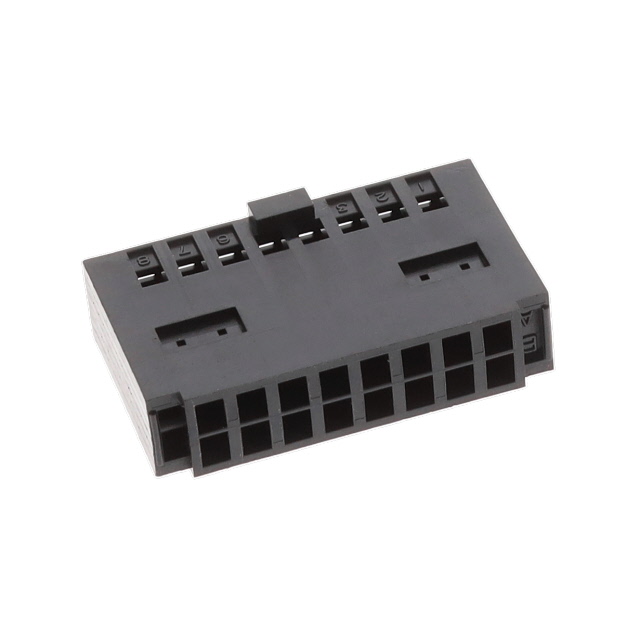

PS-D4C16

Active

JAE Electronics

CONN RCPT HSG 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PS-D4C16

Active

JAE Electronics

CONN RCPT HSG 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PS-D4C16

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

PS-D4C Series

Part	Note	Connector Type	Row Spacing [x]	Row Spacing	Mounting Type	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Features	Number of Rows	Contact Termination	Number of Positions	Color	Number of Positions
JAE Electronics PS-D4C50N	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	50	Black
JAE Electronics PS-D4C60N	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	60	Black
JAE Electronics PS-D4C60	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	60	Black
JAE Electronics PS-D4C30	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	30	Black
JAE Electronics PS-D4C50	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	50	Black
JAE Electronics PS-D4C16	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp		Black	16
JAE Electronics PS-D4C10	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	10	Black
JAE Electronics PS-D4C34	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	34	Black
JAE Electronics PS-D4C20	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	20	Black
JAE Electronics PS-D4C26	Contacts Not Included	Receptacle	0.1 in	2.54 mm	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	2.54 mm	0.1 in	Polarizing Key	2	Crimp	26	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.04
		10	$ 0.90
		25	$ 0.86
		50	$ 0.84
		100	$ 0.81
		250	$ 0.73
		500	$ 0.68

Description

General part information

PS-D4C Series

16 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
