TRAPC4MSX
ActiveSwitchcraft Inc.

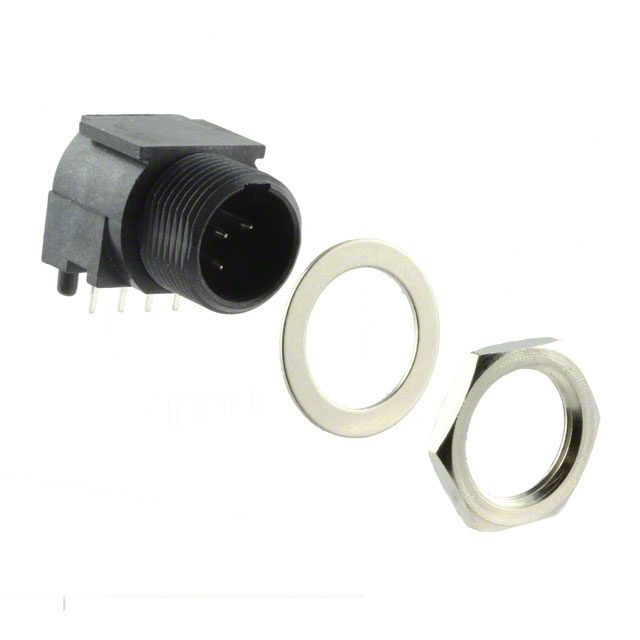

CONN XLR CONNECTOR M 4 POS 2.54MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRAPC4MSX
ActiveSwitchcraft Inc.
CONN XLR CONNECTOR M 4 POS 2.54MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TRAPC4MSX | TRAPC4 Series |
|---|---|---|
| Applications | Medical, Testing Equipment & Measurement, Audio | Medical, Testing Equipment & Measurement, Audio |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Board Guide | Board Guide |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 4 |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert | Mini XLR | Mini XLR |
| Termination | Solder | Solder |
TRAPC4 Series
CONN RCPT MALE MINI XLR 4P SLDR
| Part | Features | Mounting Feature | Number of Positions | Primary Material | Contact Material | Insert Material | Connector Type | Applications | Color | Orientation | Mounting Type | Current Rating (Amps) | Termination | Shell Size - Insert | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TRAPC4M | Board Guide | Bulkhead - Front Side Nut | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock |
Switchcraft Inc. TRAPC4MS1X | Board Guide | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock | |
Switchcraft Inc. TRAPC4MSX | Board Guide | Bulkhead - Front Side Nut | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock |
Switchcraft Inc. TRAPC4MS | Board Guide | Bulkhead - Front Side Nut | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock |
Switchcraft Inc. TRAPC4M1X | Board Guide | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock | |
Switchcraft Inc. TRAPC4MX | Board Guide | Bulkhead - Front Side Nut | 4 | Plastic | Brass | Thermoplastic | Male Pins, Receptacle | Audio, Medical, Testing Equipment & Measurement | Black | Keyed | Through Hole, Right Angle | 5 A | Solder | Mini XLR | Latch Lock |
