TRAPC4MX

Active

Switchcraft Inc.

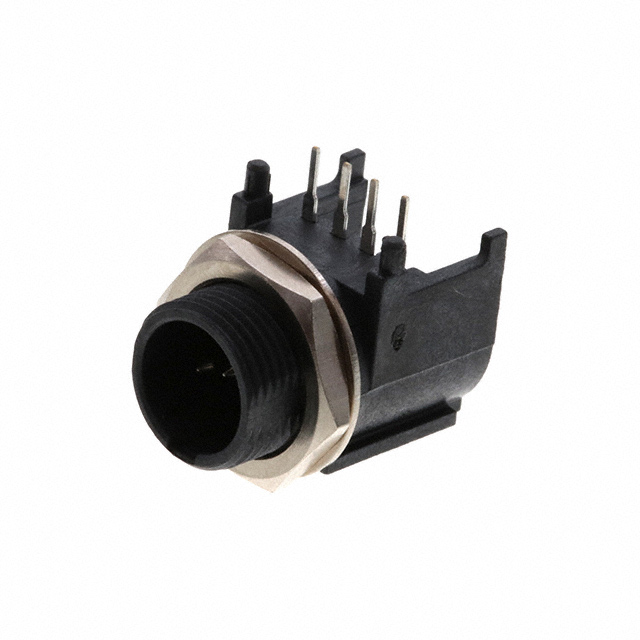

CONN RCPT MALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TRAPC4MX	TRAPC4 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	4
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN RCPT MALE MINI XLR 4P SLDR

Part	Features	Mounting Feature	Number of Positions	Primary Material	Contact Material	Insert Material	Connector Type	Applications	Color	Orientation	Mounting Type	Current Rating (Amps)	Termination	Shell Size - Insert	Fastening Type
Switchcraft Inc. TRAPC4M	Board Guide	Bulkhead - Front Side Nut	4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
Switchcraft Inc. TRAPC4MS1X	Board Guide		4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
Switchcraft Inc. TRAPC4MSX	Board Guide	Bulkhead - Front Side Nut	4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
Switchcraft Inc. TRAPC4MS	Board Guide	Bulkhead - Front Side Nut	4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
Switchcraft Inc. TRAPC4M1X	Board Guide		4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
Switchcraft Inc. TRAPC4MX	Board Guide	Bulkhead - Front Side Nut	4	Plastic	Brass	Thermoplastic	Male Pins, Receptacle	Audio, Medical, Testing Equipment & Measurement	Black	Keyed	Through Hole, Right Angle	5 A	Solder	Mini XLR	Latch Lock
