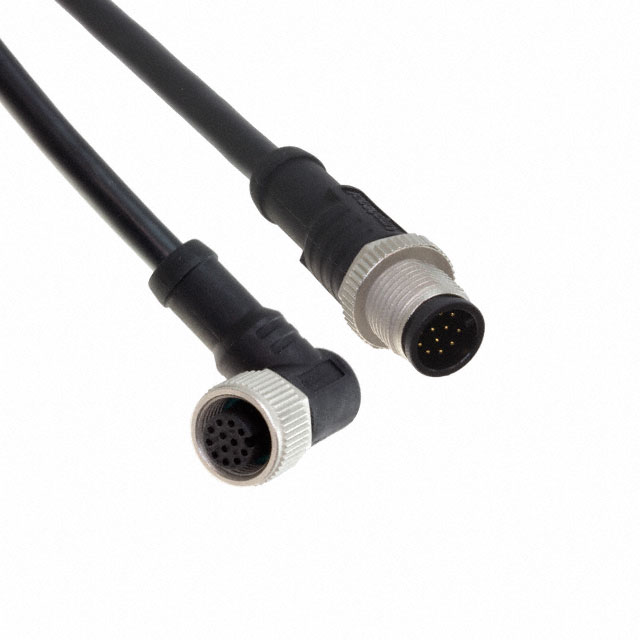

M12A12ML-12AFR-SDA05

Active

Amphenol LTW

CBL 12POS MALE TO FMALE 1.64'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A12ML-12AFR-SDA05

Active

Amphenol LTW

CBL 12POS MALE TO FMALE 1.64'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A12ML-12AFR-SDA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions [custom]	12
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	12
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

M12A12ML Series

Part	Cable Material	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector Shell Size - Insert	Shielding	1st Connector Gender	1st Connector Orientation	1st Connector Number of Positions [custom]	1st Connector Number of Positions Loaded	Cable Type	Usage	2nd Connector Type	1st Connector Type	Length [x]	Length [x]	Color	2nd Connector Number of Positions Loaded	Ingress Protection	2nd Connector Shell Size - Insert	2nd Connector Number of Positions	Assembly Configuration	2nd Connector Gender
Amphenol LTW M12A12ML-12AML-SDA05	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Receptacle	Receptacle	1.64 ft	500 mm	Black	All	IP68 IP69K	M12	12	Standard
Amphenol LTW M12A12ML-12AFL-SB002	Polyurethane (PUR)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Plug	Receptacle	6.56 ft	2 m	Black	All	IP68 IP69K	M12	12	Standard	Female Sockets
Amphenol LTW M12A12ML-12AFL-SD002	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Plug	Receptacle	6.56 ft	2 m	Black	All	IP68 IP69K	M12	12	Standard	Female Sockets
Amphenol LTW M12A12ML-12AFL-SD001	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Plug	Receptacle	3.28 ft	1 m	Black	All	IP68 IP69K	M12	12	Standard	Female Sockets
Amphenol LTW M12A12ML-12AFR-SDA05	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Plug Right Angle	Receptacle	1.64 ft	500 mm	Black	All	IP68 IP69K	M12	12	Standard	Female Sockets
Amphenol LTW M12A12ML-12AFL-SB001	Polyurethane (PUR)	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Unshielded	Male Pins	A	12	All	Round	Industrial Environments	Plug	Receptacle	3.28 ft	1 m	Black	All	IP68 IP69K	M12	12	Standard	Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.37
		10	$ 19.59
		25	$ 18.74
		50	$ 18.13
		100	$ 17.53
		250	$ 16.56
		500	$ 16.08

Description

General part information

M12A12ML Series

Cable Assembly 1.64' (500.00mm)
