1-776200-2

Active

TE Connectivity AMP Connectors

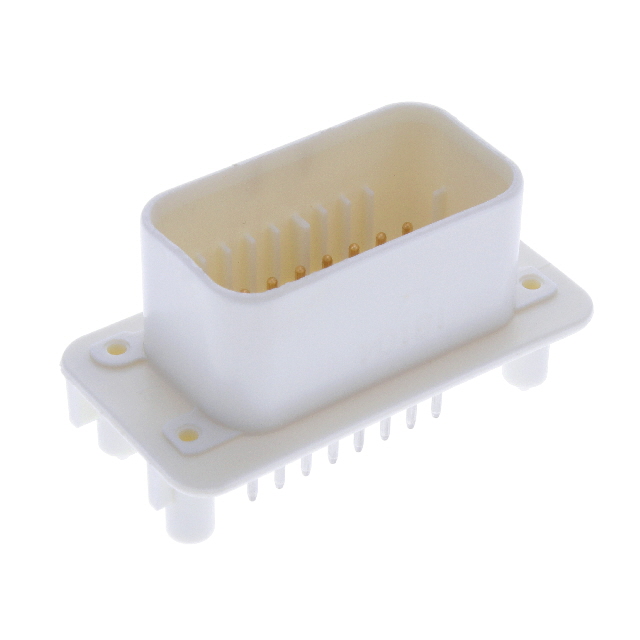

CONN HEADER VERT 23POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-776200-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 23POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-776200-2	776200 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	Gold-Palladium	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Mounting Flange	Sealable, Mounting Flange
Insulation Color	Natural	Black, Natural, Gray
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	23	23
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776200 Series

CONN HEADER VERT 23POS 4MM

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Voltage Rating	Termination	Fastening Type	Number of Positions	Contact Material	Style	Mounting Type	Number of Rows	Features	Applications	Shrouding	Contact Finish - Mating
TE Connectivity AMP Connectors 776200-1	Male Pin	-40 °C	105 ░C	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Varies by Wire Gauge	Circular	Black	Header	0.157 in	4 mm	All	250 VAC	Solder	Locking Ramp	23	Brass	Board to Cable/Wire	Panel Mount, Through Hole	3	Mounting Flange, Sealable	Automotive, Industrial	Shrouded - 4 Wall
TE Connectivity AMP Connectors 776200-2	Male Pin	-40 °C	105 ░C	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Varies by Wire Gauge	Circular	Natural	Header	0.157 in	4 mm	All	250 VAC	Solder	Locking Ramp	23	Brass	Board to Cable/Wire	Panel Mount, Through Hole	3	Mounting Flange, Sealable	Automotive, Industrial	Shrouded - 4 Wall
TE Connectivity AMP Connectors 1-776200-2	Male Pin	-40 °C	125 °C	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Varies by Wire Gauge	Circular	Natural	Header	0.157 in	4 mm	All	250 VAC	Solder	Locking Ramp	23	Brass	Board to Cable/Wire	Panel Mount, Through Hole	3	Mounting Flange, Sealable	Automotive, Industrial	Shrouded - 4 Wall	Gold-Palladium
TE Connectivity AMP Connectors 1-776200-4	Male Pin	-40 °C	125 °C	Polybutylene Terephthalate (PBT), Glass Filled	0.157 "	4 mm	Varies by Wire Gauge	Circular	Gray	Header	0.157 in	4 mm	All	250 VAC	Solder	Locking Ramp	23	Brass	Board to Cable/Wire	Panel Mount, Through Hole	3	Mounting Flange, Sealable	Automotive, Industrial	Shrouded - 4 Wall	Gold-Palladium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.85
		40	$ 10.67
		120	$ 9.88
		520	$ 8.91
		1000	$ 8.50

Description

General part information

776200 Series

Connector Header Panel Mount, Through Hole 23 position 0.157" (4.00mm)
