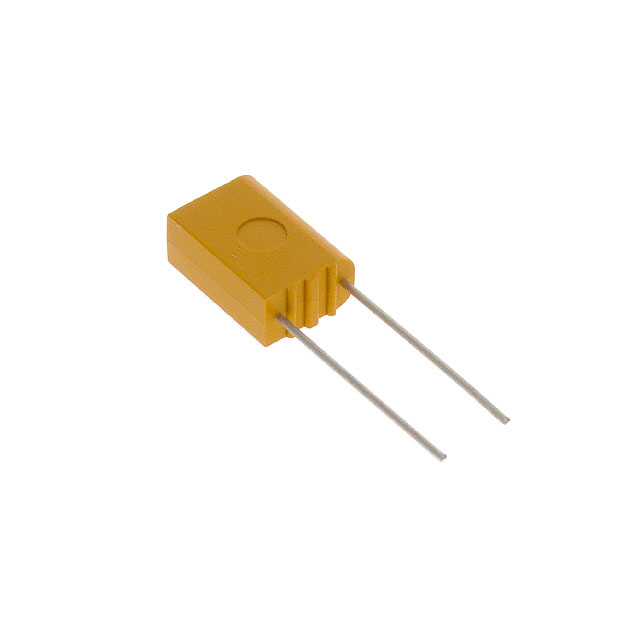

T340D476M025AS

Active

KEMET

CAPACITOR,47UF,25VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,47UF,25VDC,20-% TOL,20+% TOL ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	T340D476M025AS

Capacitance	47 µF
ESR (Equivalent Series Resistance)	1 Ohm
Features	General Purpose
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.484 in
Size / Dimension [x]	12.3 mm
Size / Dimension [y]	0.287 in
Size / Dimension [y]	7.3 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	25 VDC

Part	Capacitance	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Mounting Type	Voltage - Rated	Features	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Manufacturer Size Code
KEMET T340D476M025AS	47 µF	0.394 in	10 mm	1 Ohm	Through Hole	25 VDC	General Purpose	Radial	0.413 in	10.5 mm	20 %	-55 °C	125 °C	Molded	0.484 in	0.287 in	7.3 mm	12.3 mm	D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF Molded Tantalum Capacitors 25 V Radial 1Ohm @ 100kHz
