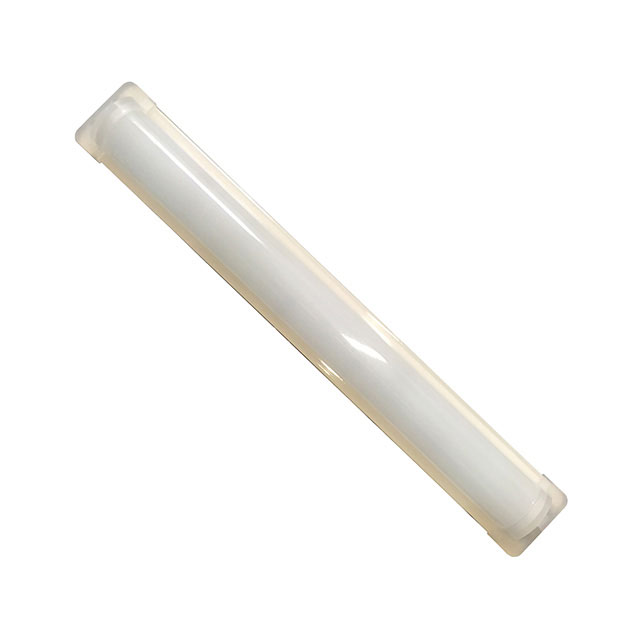

AB-GES-P28212W30BFT2

Active

American Bright Optoelectronics Corporation

LED ENG AB-GES WH LNR STR 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AB-GES-P28212W30BFT2

Active

American Bright Optoelectronics Corporation

LED ENG AB-GES WH LNR STR 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AB-GES Series

LED Lighting COBs Engines Modules LED Engine AB-GES White, Warm Linear Light Strip, Plug and Play

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-GES-P28212W30BFT2	AB-GES Series

CCT (K)	3000 K	3000 - 6500 K
Color	White, Warm	Neutral, White, Warm, Cool
Configuration	Linear Light Strip, Plug and Play	Linear Light Strip, Round, Square, Plug and Play
CRI (Color Rendering Index)	80	80
Height [z]	17.5 mm	1.6 - 18.7 mm
Lens Type	Tubular	Flat, Tubular
Light Emitting Surface (LES)	-	18.8 mm
Luminous Flux @ Current/Temperature	1000 lm	280 - 2550 lm
Size / Dimension	-	25.7 mm
Size / Dimension [x]	304.8 mm	40 - 569 mm
Size / Dimension [y]	2.7 mm	2.7 - 41.6 mm
Type	LED Engine	LED Engine, LED Module
Voltage - Forward (Vf) (Typ)	230 VAC	120 - 230 VAC

AB-GES Series

LED ENG AB-GES WH LNR STRP 4000K

Part	Color	Lens Type	CCT (K)	Type	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Size / Dimension [diameter]	Height [z]	Light Emitting Surface (LES) [diameter]
American Bright Optoelectronics Corporation AB-GES-L15106W404T1	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	630 lm	24 mm	150 mm	80
American Bright Optoelectronics Corporation AB-GES-L08103W404T1	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	280 lm	24 mm	76 mm	80
American Bright Optoelectronics Corporation AB-GES-C02104W30NN2	Warm, White	Flat	3000 K	LED Engine	120 VAC	Round	300 lm			80	25.7 mm
American Bright Optoelectronics Corporation AB-GES-S04124W30NN1	Warm, White	Flat	3000 K	LED Engine	120 VAC	Square	2100 lm	40 mm	40 mm	80		1.6 mm	18.8 mm
American Bright Optoelectronics Corporation AB-GES-L54108W304N3	Warm, White	Flat	3000 K	LED Engine	120 VAC	Linear Light Strip	880 lm	20 mm	542 mm	80
American Bright Optoelectronics Corporation AB-GES-P28212W30BFT2	Warm, White	Tubular	3000 K	LED Engine	230 VAC	Linear Light Strip, Plug and Play	1000 lm	2.7 mm	304.8 mm	80		17.5 mm
American Bright Optoelectronics Corporation AB-GES-L27104W404N3	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	500 lm	20 mm	271 mm	80
American Bright Optoelectronics Corporation AB-GES-F56124W65BFT1	Cool, White	Flat	6500 K	LED Module	120 VAC	Linear Light Strip, Plug and Play	2550 lm	41.6 mm	569 mm	80		18.7 mm
American Bright Optoelectronics Corporation AB-GES-L28112W404T2	Neutral, White	Flat	4000 K	LED Engine	120 VAC	Linear Light Strip	1400 lm	24 mm	280 mm	80
American Bright Optoelectronics Corporation AB-GES-L27204W404N3	Neutral, White	Flat	4000 K	LED Engine	230 VAC	Linear Light Strip	500 lm	20 mm	271 mm	80
