SRN2010BTA-4R7M

Active

Bourns Inc.

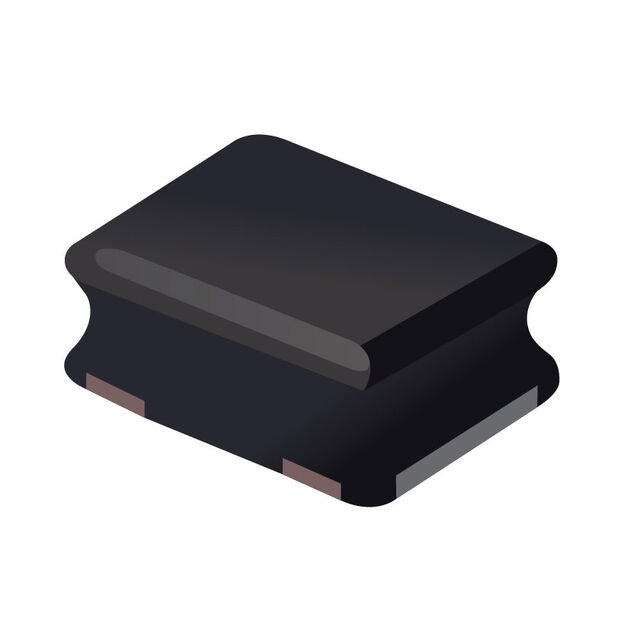

POWER INDUCTOR, SMD, 4.7UH, 1.3A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRN2010BTA-4R7M

Active

Bourns Inc.

POWER INDUCTOR, SMD, 4.7UH, 1.3A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRN2010BTA-4R7M

Current - Saturation (Isat)	900 mA
Current Rating (Amps)	1.3 A
DC Resistance (DCR) [Max]	474 mOhm
Frequency - Self Resonant	42 MHz
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0806 (2016 Metric)
Q @ Freq	1 MHz, 10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	2010
Tolerance	20 %
Type	Wirewound, Drum Core

SRN2010BTA Series

Part	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	DC Resistance (DCR)	Shielding	Mounting Type	Frequency - Self Resonant	Material - Core	Package / Case	Current Rating (Amps)	Type	Tolerance	Inductance Frequency - Test	DC Resistance (DCR) [Max]
Bourns Inc. SRN2010BTA-1R5M	1 MHz 10	0.039 "	1 mm	1.5 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	1.6 A	118 mOhm	Shielded	Surface Mount	95 MHz	Ferrite	0806 (2016 Metric)	2.5 A	Drum Core Wirewound	20 %	100 kHz
Bourns Inc. SRN2010BTA-2R2M	1 MHz 10	0.039 "	1 mm	2.2 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	1.3 A	168 mOhm	Shielded	Surface Mount	76 MHz	Ferrite	0806 (2016 Metric)	2.1 A	Drum Core Wirewound	20 %	100 kHz
Bourns Inc. SRN2010BTA-R47M	1 MHz 10	0.039 "	1 mm	470 nH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	2.9 A	45 mOhm	Shielded	Surface Mount	240 MHz	Ferrite	0806 (2016 Metric)	4 A	Drum Core Wirewound	20 %	100 kHz
Bourns Inc. SRN2010BTA-4R7M	1 MHz 10	0.039 "	1 mm	4.7 ÁH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	900 mA		Shielded	Surface Mount	42 MHz	Ferrite	0806 (2016 Metric)	1.3 A	Drum Core Wirewound	20 %	100 kHz	474 mOhm
Bourns Inc. SRN2010BTA-6R8M	1 MHz 10	0.039 "	1 mm	6.8 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	800 mA	576 mOhm	Shielded	Surface Mount	37 MHz	Ferrite	0806 (2016 Metric)	900 mA	Drum Core Wirewound	20 %	100 kHz
Bourns Inc. SRN2010BTA-3R3M	1 MHz 10	0.039 "	1 mm	3.3 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	1.1 A		Shielded	Surface Mount	64 MHz	Ferrite	0806 (2016 Metric)	1.7 A	Drum Core Wirewound	20 %	100 kHz	252 mOhm
Bourns Inc. SRN2010BTA-R68M	1 MHz 10	0.039 "	1 mm	0.68 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	2.5 A		Shielded	Surface Mount	180 MHz	Ferrite	0806 (2016 Metric)	3.6 A	Drum Core Wirewound	20 %	100 kHz
Bourns Inc. SRN2010BTA-R33M	1 MHz 10	0.039 "	1 mm	330 nH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	3.3 A		Shielded	Surface Mount	250 MHz	Ferrite	0806 (2016 Metric)	4.6 A	Drum Core Wirewound	20 %	100 kHz	34.8 mOhm
Bourns Inc. SRN2010BTA-1R0M	1 MHz 10	0.039 "	1 mm	1 µH	-55 °C	125 °C	2010	AEC-Q200	2 mm	0.063 in	1.6 mm	0.079 in	2 A		Shielded	Surface Mount	130 MHz	Ferrite	0806 (2016 Metric)	3.1 A	Drum Core Wirewound	20 %	100 kHz	80.4 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		5	$ 0.32
		10	$ 0.30
		50	$ 0.27
		100	$ 0.25
		250	$ 0.22
		500	$ 0.19
		1000	$ 0.18
	Digi-Reel®	1	$ 0.33
		5	$ 0.32
		10	$ 0.30
		50	$ 0.27
		100	$ 0.25
		250	$ 0.22
		500	$ 0.19
		1000	$ 0.18
	Tape & Reel (TR)	3000	$ 0.15
		6000	$ 0.14
		15000	$ 0.13
Newark	Each (Supplied on Cut Tape)	1	$ 0.43
		10	$ 0.35
		25	$ 0.32
		50	$ 0.29
		100	$ 0.27

Description

General part information

SRN2010BTA Series

4.7 µH Shielded Drum Core, Wirewound Inductor 1.3 A 474mOhm Max 0806 (2016 Metric)
