1-1337461-0

Active

TE Connectivity AMP Connectors

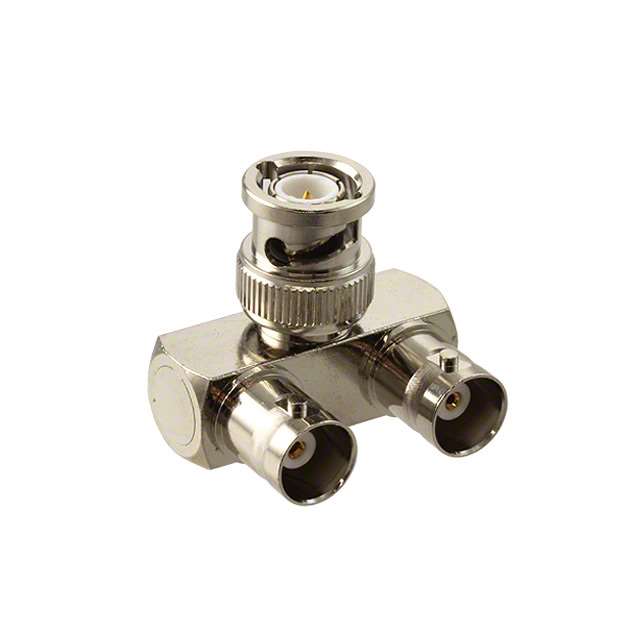

CONN ADAPT PLUG TO JACK BNC

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG TO JACK BNC

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337461-0

Adapter Series	BNC to BNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Style	U-Shape

CONN ADAPT PLUG TO JACK BNC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Frequency - Max [Max]	Center Contact Plating	Body Material	Mounting Type	Style	Convert From (Adapter End)	Mating Cycles	Adapter Type	Impedance	Adapter Series	Convert To (Adapter End)	Body Finish	Fastening Type	Center Contact Material	Conversion Type
TE Connectivity AMP Connectors 1-1337461-0	-65 ░C	85 °C	Polypropylene (PP)	4 GHz	Gold	Brass	Free Hanging (In-Line), Right Angle	U-Shape	BNC Plug, Male Pin	500	Plug to Jack	50 Ohms	BNC to BNC, Dual	BNC Jack, Female Socket (2)	Nickel	Bayonet Lock	Brass	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
