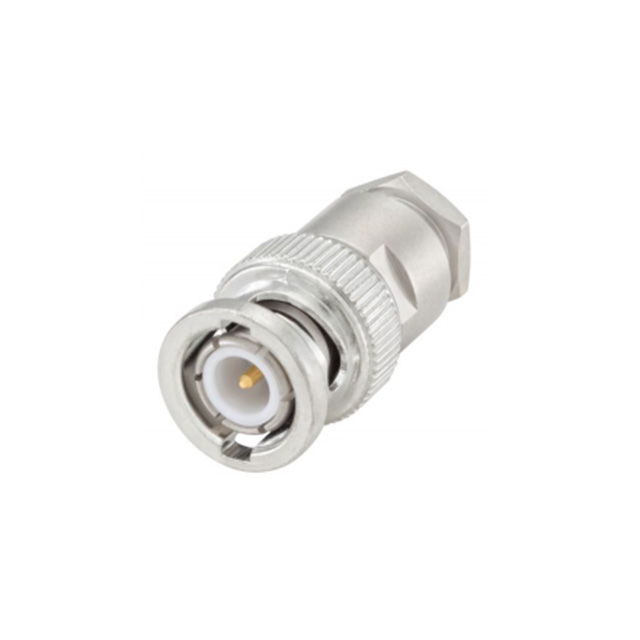

51S106-006N5

Active

Rosenberger

CONN BNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	51S106-006N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 2 pcs, 2 pcs, 1 pcs, 1 pcs
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	400 V

Part	Shield Termination	Body Material	Impedance	Dielectric Material	Housing Color	Contact Termination	Center Contact Material	Mounting Type	Mating Cycles	Voltage Rating	Number of Ports	Frequency - Max [Max]	Connector Type	Includes	Fastening Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Cable Group	Connector Style	Center Contact Plating
Rosenberger 51S106-006N5	Clamp	Brass	50 Ohms	Polytetrafluoroethylene (PTFE)	Silver	Solder	Brass	Free Hanging (In-Line)	500	400 V	1	10 GHz	Male Pin Plug	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs 2 pcs 2 pcs	Bayonet Lock	White Bronze	155 °C	-55 °C	141	RG-58C	BNC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
