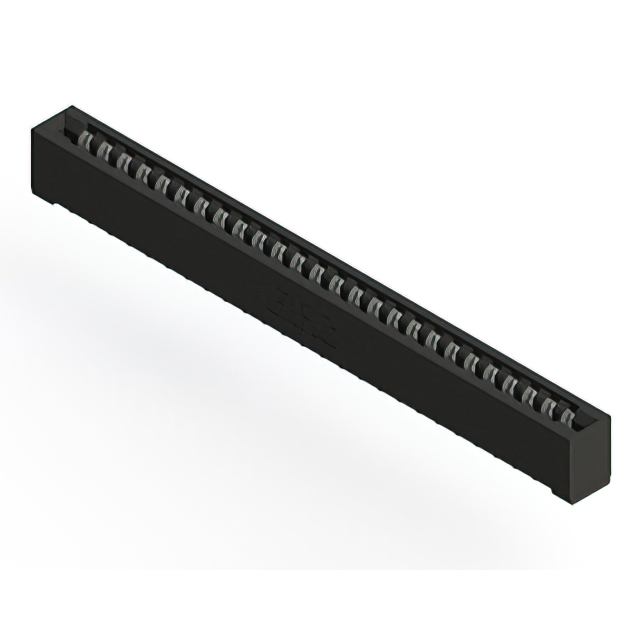

Specification	857-026-421-101

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	52, 26
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	1 rows

857-026 Series

...

Part	Termination Rows	Termination	Read Out	Gender	Pitch	Contact Finish Thickness	Number of Positions	Card Type	Number of Rows	Flange Feature Diameter	Flange Feature	Mounting Type	Color	Contact Material	Contact Type	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Card Thickness (Min)	Card Thickness (Max)	Material - Insulation
EDAC Inc. 857-026-557-103	1 rows	Solder	Dual	Female	0.156 in	10 Ąin	26 52	Dual Edge Non Specified	2	0.116 in	Floating Bobbin Flush Mount	Right Angle Through Hole	Black	Copper Alloy	Semi Bellows	Gold	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-500-203	2 rows	Solder Eyelet(s)	Dual	Female	0.156 in	10 Ąin	13 26	Dual Edge Non Specified	2	0.116 in	Floating Bobbin Flush Mount	Through Hole	Black	Copper Alloy	Semi Bellows	Gold	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-400-207	2 rows	Solder Eyelet(s)	Dual	Female	0.156 in		13 26	Dual Edge Non Specified	2		Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	Copper Alloy	Semi Bellows	Tin	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-420-208	2 rows	Solder	Dual	Female	0.156 in		13 26	Dual Edge Non Specified	2		4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Black	Copper Alloy	Semi Bellows	Tin	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-531-108	1 rows	Solder	Single	Female	0.156 in	10 Ąin	26	Non Specified Single Edge	1		4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Black	Copper Alloy	Semi Bellows	Gold	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-453-107	1 rows	Solder	Dual	Female	0.156 in		26 52	Dual Edge Non Specified	2		Flush Mount M3 Threaded Insert Top Opening	Right Angle Through Hole	Black	Copper Alloy	Semi Bellows	Tin	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-547-107	1 rows	Wire Wrap	Single	Female	0.156 in	10 Ąin	26	Non Specified Single Edge	1		Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	Copper Alloy	Semi Bellows	Gold	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-527-102	1 rows	Solder	Single	Female	0.156 in	10 Ąin	26	Non Specified Single Edge	1	0.128 in	Flush Mount Top Opening Unthreaded	Through Hole	Black	Copper Alloy	Semi Bellows	Gold	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-459-103	1 rows	Solder	Single	Female	0.156 in		26	Non Specified Single Edge	1	0.116 in	Floating Bobbin Flush Mount	Right Angle Through Hole	Black	Copper Alloy	Semi Bellows	Tin	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
EDAC Inc. 857-026-458-208	2 rows	Solder	Single	Female	0.156 in		13 26	Dual Edge Non Specified	2		4-40 Flush Mount Threaded Insert Top Opening	Right Angle Through Hole	Black	Copper Alloy	Semi Bellows	Tin	125 °C	-40 °C	0.054 in	0.07 in	Polyphenylene Sulfide PPS
