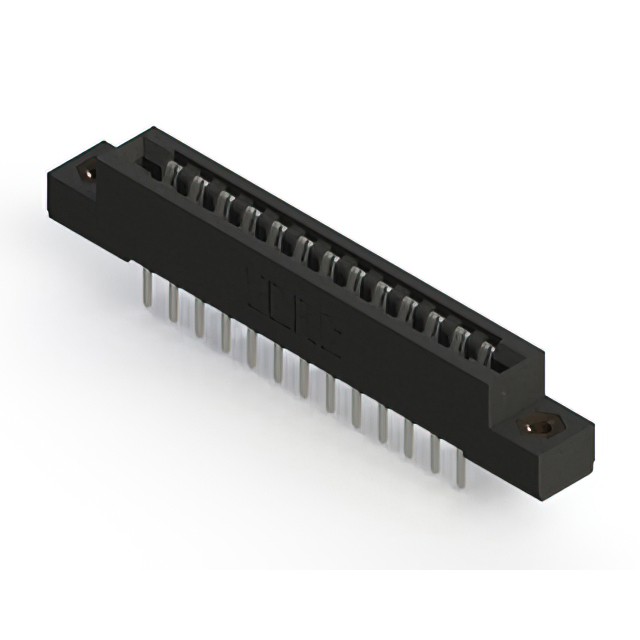

857-026-420-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 26POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-026-420-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 26POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-026-420-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-026 Series

...

Part	Termination Rows	Material - Insulation	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Bay/Row [custom]	Color	Contact Material	Contact Finish	Gender	Number of Positions	Card Type
EDAC Inc. 857-026-505-104	1	Polyphenylene Sulfide (PPS)	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Single	Semi Bellows	0.156 in	3.96 mm	Through Hole	10 Áin	0.25 Ám	Solder Eyelet(s)	26	Black	Copper Alloy	Gold	Female	26	Non Specified - Single Edge
EDAC Inc. 857-026-557-103	1	Polyphenylene Sulfide (PPS)	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Dual	Semi Bellows	0.156 in	3.96 mm	Through Hole Right Angle	10 Áin	0.25 Ám	Solder	26	Black	Copper Alloy	Gold	Female	52	Non Specified - Dual Edge
EDAC Inc. 857-026-500-203	2	Polyphenylene Sulfide (PPS)	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Dual	Semi Bellows	0.156 in	3.96 mm	Through Hole	10 Áin	0.25 Ám	Solder Eyelet(s)	13	Black	Copper Alloy	Gold	Female	26	Non Specified - Dual Edge
EDAC Inc. 857-026-400-207	2	Polyphenylene Sulfide (PPS)	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Dual	Semi Bellows	0.156 in	3.96 mm	Through Hole			Solder Eyelet(s)	13	Black	Copper Alloy	Tin	Female	26	Non Specified - Dual Edge
EDAC Inc. 857-026-420-208	2	Polyphenylene Sulfide (PPS)	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Dual	Semi Bellows	0.156 in	3.96 mm	Through Hole			Solder	13	Black	Copper Alloy	Tin	Female	26	Non Specified - Dual Edge
EDAC Inc. 857-026-531-108	1	Polyphenylene Sulfide (PPS)	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Single	Semi Bellows	0.156 in	3.96 mm	Through Hole	10 Áin	0.25 Ám	Solder	26	Black	Copper Alloy	Gold	Female	26	Non Specified - Single Edge
EDAC Inc. 857-026-453-107	1	Polyphenylene Sulfide (PPS)	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Dual	Semi Bellows	0.156 in	3.96 mm	Through Hole Right Angle			Solder	26	Black	Copper Alloy	Tin	Female	52	Non Specified - Dual Edge
EDAC Inc. 857-026-547-107	1	Polyphenylene Sulfide (PPS)	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Single	Semi Bellows	0.156 in	3.96 mm	Through Hole	10 Áin	0.25 Ám	Wire Wrap	26	Black	Copper Alloy	Gold	Female	26	Non Specified - Single Edge
EDAC Inc. 857-026-527-102	1	Polyphenylene Sulfide (PPS)	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Single	Semi Bellows	0.156 in	3.96 mm	Through Hole	10 Áin	0.25 Ám	Solder	26	Black	Copper Alloy	Gold	Female	26	Non Specified - Single Edge
EDAC Inc. 857-026-459-103	1	Polyphenylene Sulfide (PPS)	1	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Single	Semi Bellows	0.156 in	3.96 mm	Through Hole Right Angle			Solder	26	Black	Copper Alloy	Tin	Female	26	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 84.66
Newark	Each	1	$ 101.59
		100	$ 72.27
		250	$ 59.45
		500	$ 47.18
		1000	$ 31.88

Description

General part information

857-026 Series

26 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
