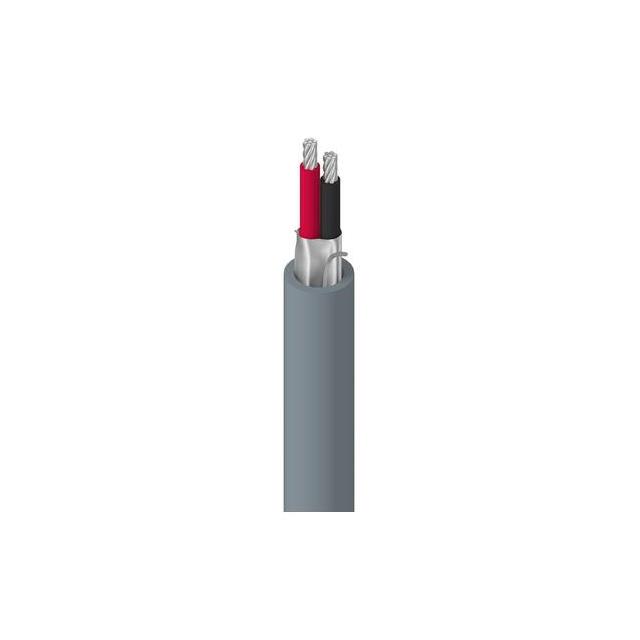

9464 060U500

Active

Belden Inc.

CABLE 2CON 20AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 20AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9464 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Number of Conductors	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Shield Type	Features	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length [x]	Length [x]	Conductor Material	Jacket (Insulation) Material	Shield Coverage
Belden Inc. 9464 060U500	2	20 AWG	Polyethylene (PE)	0.889 mm	0.035 in	Audio Control Instrumentation	Foil	Drain Wire	Multi-Conductor	-20 C	60 °C	Aluminum	Chrome	28	7	5.44 mm	0.214 in	300 V	500 '	152.4 m	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.13

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 20 AWG Foil 500.0' (152.4m)
