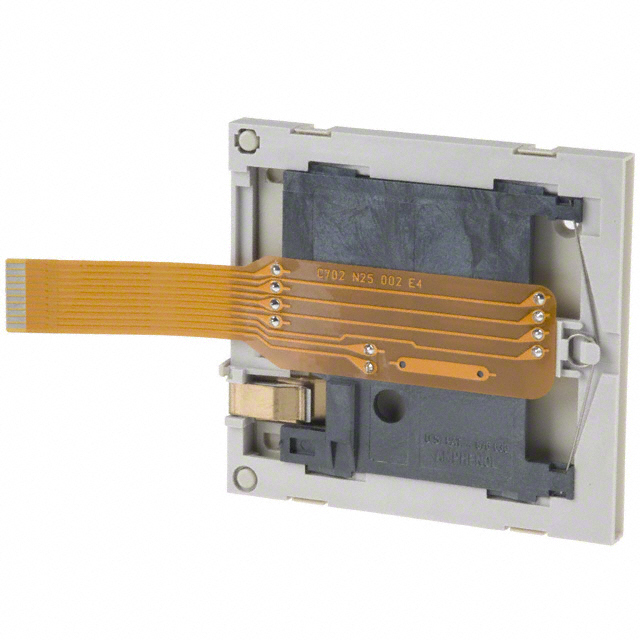

C702 10M008 0014

Obsolete

Amphenol Tuchel Industrial

CONN SMART CARD PUSH-PULL

Search across all available documentation for this part.

Obsolete

Amphenol Tuchel Industrial

CONN SMART CARD PUSH-PULL

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Insertion, Removal Method	Mounting Type	Features	Mounting Feature	Height Above Board	Height Above Board	Card Type	Height Above Board [z]	Height Above Board [z]	Height Above Board
Amphenol Tuchel Industrial C702 10M008 232 40	10	Pull Out Push In	Through Hole Right Angle	Board Lock Switch	Normal Standard - Top	10.2 mm	0.402 in	Smart Card
Amphenol Tuchel Industrial C702 10M008 0234	10	Pull Out Push In		Assembly with Cable Board Lock Switch				Smart Card
Amphenol Tuchel Industrial C702 10M008 231 40	10	Pull Out Push In	Through Hole Right Angle	Board Lock Switch	Normal Standard - Top			Smart Card	0.283 in	7.2 mm
Amphenol Tuchel Industrial C702 10M008 234 40	10	Pull Out Push In	Through Hole Right Angle	Board Lock Switch	Normal Standard - Top			Smart Card
Amphenol Tuchel Industrial C702 10M008 0014	10	Pull Out Push In		Assembly with Cable Switch	Normal Standard - Top	0.275 in		Smart Card			6.99 mm
Amphenol Tuchel Industrial C702 10M008 9254
Amphenol Tuchel Industrial C702 10M008 701 20	10	Pull Out Push In		Assembly with Cable Switch	Normal Standard - Top			Smart Card

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 (8 + 2) Position Card Connector Smart Card Panel Mount
